INFO

Kategorie
Bourací kladiva / Sbíječky
Značka/model

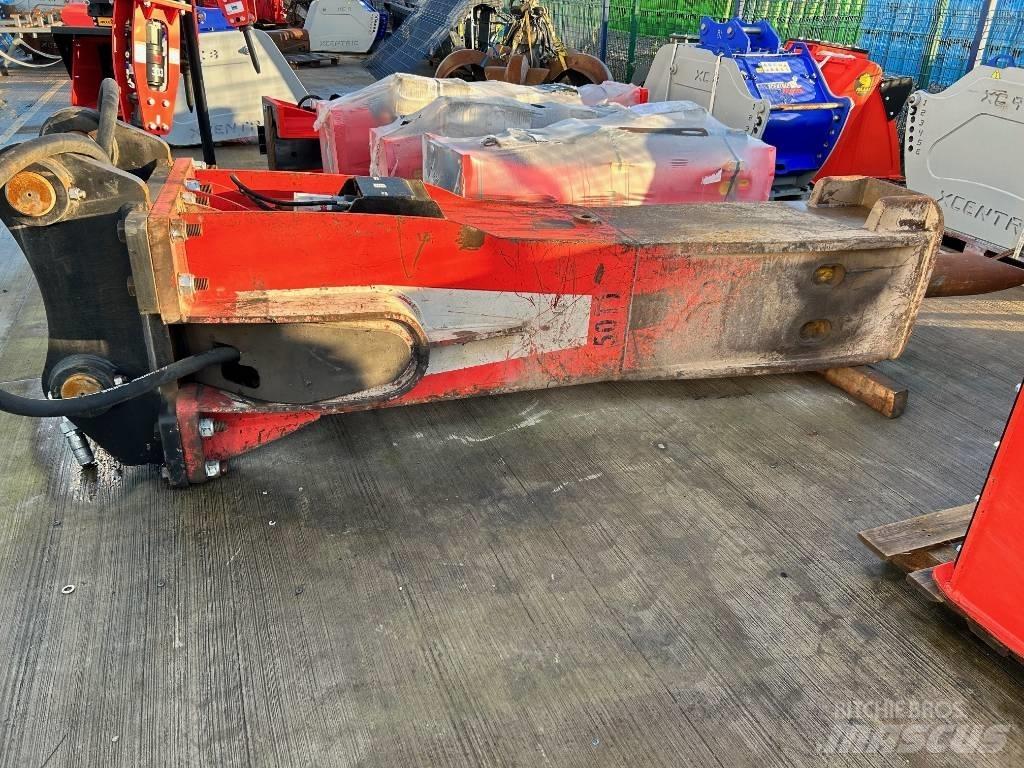

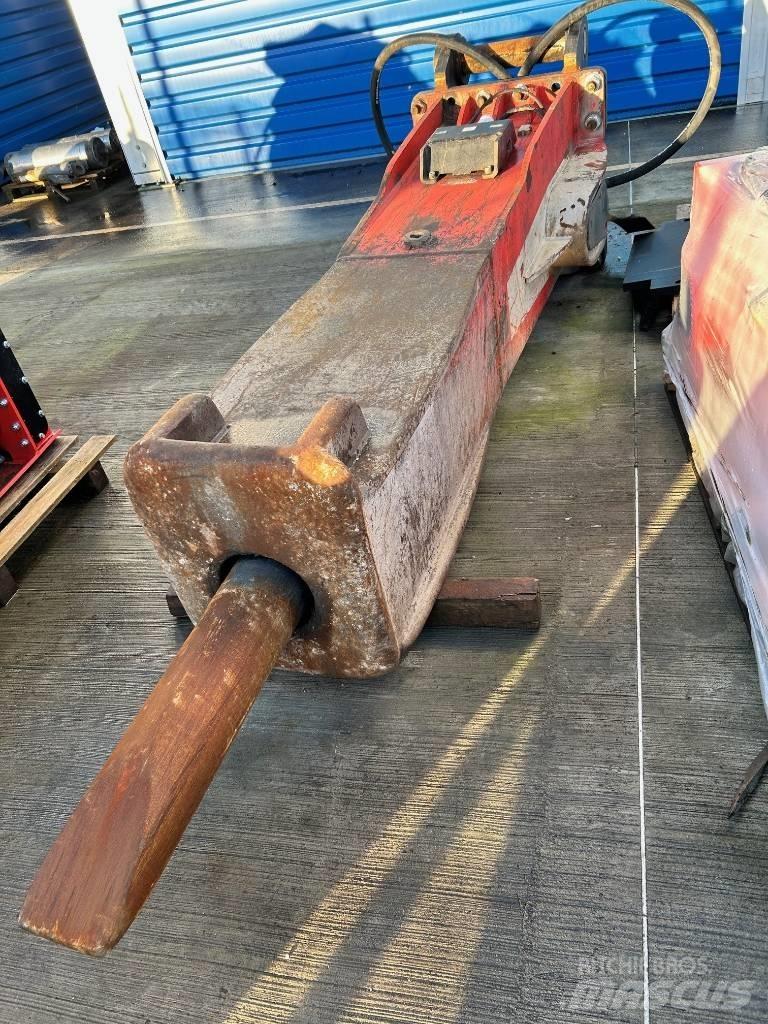

Rammer 5011 A
Rok výroby
2017
Zvláštní možnosti
Možnost zapůjčení,Repasované
Umístění stroje
Cheshire
Stát
Spojené králoství (UK)
Obecný stupeň
1
2
3
4
5
Mascus ID
B62D76D8

PODROBNOSTI

Poslední kontrola
2023-11-29
Poškozený
Operates As Intended
Celková hmotnost
3900 kg
Další informace
Comes with Head Bracket and Hoses Recent Refurbishment SPECIFICATION Minimum working weight, flange mounted *1 4750 kg 10470 lb Weight 3900 kg 8600 lb Working length 3329 mm 131.1 in Impact rate, Long stroke 370 - 530 bpm Impact rate, Short stroke 450 - 620 bpm Operating pressure 160 - 170 bar 2320 - 2465 psi Oil flow range 280 - 380 l/min 74.0 - 100.4 gal/min Pressure relief setting *2 220 bar 3190 psi Pressure relief max 230 bar 3335 psi Back pressure max 10 bar 145 psi Input power 108 kW 145 hp Tool diameter 190 mm 7.48 in Pressure line connection (IN) SAE 6000 psi 1 1/2" Return line connection (OUT) SAE 6000 psi 1 1/2" Pressure line size, min. inner diameter 32 mm 1.26 in Return line size, min. inner diameter 32 mm 1.26 in Grease connection BSPP-internal 3/8" Air connection (A) BSPP-internal 3/8" Optimum oil temperature 40 - 60 °C 104 - 140 °F Allowed oil temperature range -20 - 80 °C -4 - 176 °F Optimum oil viscosity at operating temperature 30 - 60 cSt Allowed viscosity range 20 - 1000 cSt Carrier weight, optimum 45 - 69 t 99200 - 152100 lb Carrier weight, range *3 43 - 80 t 94800 - 176400 lb Noise level, measured (2000/14/EC) 122 dB(A) Noise level, guaranteed (2000/14/EC) 126 dB(A)Zobrazit další

Blue Machinery ( Central )

New Cheshire Business Park, CW9 6GG Northwich Cheshire Spojené králoství (UK)
