CM CBF09

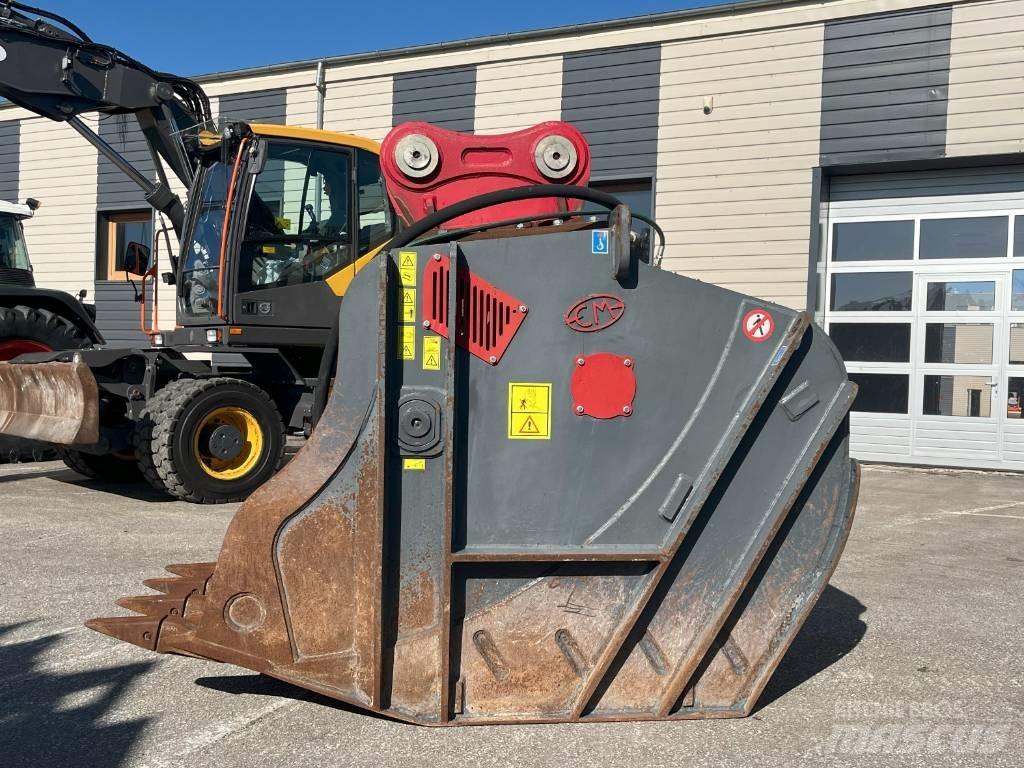

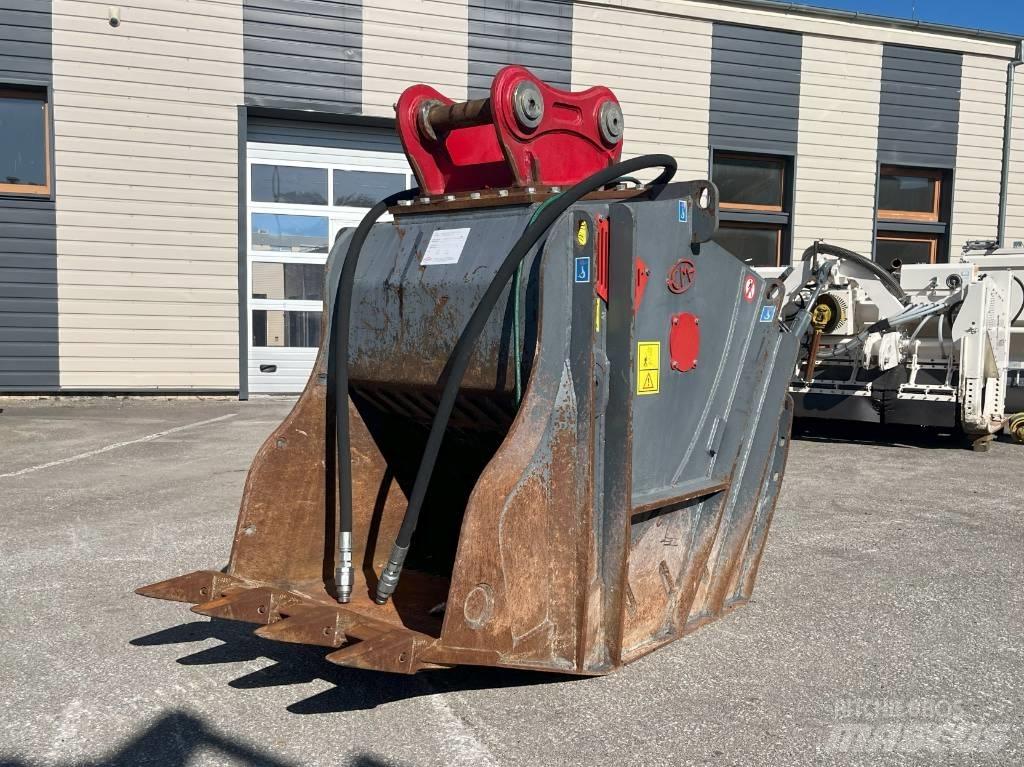

CM CBF09 crusher bucket Model: CBF09 Manufacturer: CM S.r.l. (Italy) Suitable for excavators: 20-30 t Weight: 3,500 kg Load capacity: approx. 0.85 m³ Opening dimensions: ~900 x 550 mm Description: The CM CBF09 is a hydraulic, crusher bucket for excavators weighing between 20 and 30 tonnes. This unit allows on-site crushing of concrete, bricks, asphalt and other materials. The ideal solution for construction sites, demolition work and waste management. Technical features: Opening dimensions: approx. 900 x 550mm Load capacity: 0.85m³ Recommended excavator weight: 20-30t Bucket weight: ~3 500kg Maximum hydraulic pressure: 200bar Output: up to 38m³/hour (depending on the material) Front digging teeth Adjustable outlet height (fractional changeable) 20-140 mm Key benefits: Direct on-site crushing – lower transport and landfill costs Robust and reliable construction – the bucket is made from abrasion-resistant steel High quality, fast spare parts delivery. Additional information: Inspection available at UAB KASIMA warehouse Delivery possible
