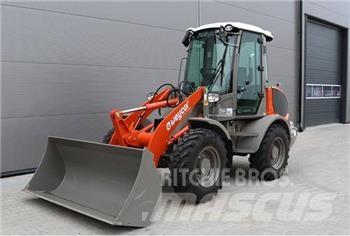

Weycor AR 420
Cena bez DPH
1626771 Kč
66 000 EUR
Tisk
INFO
Kategorie
Kolové nakladače
Značka/model
Weycor AR 420
Rok výroby
2024
Najeté motohodiny
1 h
Stav
Nové/nepoužité
Stát
Polsko
Obecný stupeň
1
2
3
4
5
Mascus ID
EBC6E59D
INFORMACE O CENĚ
Výběr měny
CZK
Cena bez DPH
1626771 Kč
DPH
374157 Kč
Cena včetně DPH
2000928 Kč
PODROBNOSTI
Brutto hmotnost
5300 kg
Typ vozu
Kloubový
Typ kabiny
Zavřená kabina
Třída emisí
Stupeň V
Motor
TD 2.9 L4
Kapacita lopaty
0.88 m3
Výkon motoru
55 kW (74.8 hp)
Výrobce motoru
Deutz
Maximální rychlost
20 km/h
Průtok pomocné hydrauliky
62 l/min
Příslušenství
Další informace
Manufacturer: ATLAS Weyhausen (Germany)
Engine: Deutz TD2.9 L4 diesel
Power: 55 kW (74 HP) at 2200 rpm
Max. torque: 260 Nm at 1600 rpm
Displacement: 2920 cm³
Number and arrangement of cylinders: 4 in-line
Pullout force: 5160 daN
Static tipping load (ISO/DIS 14397-1) - straight: 4160 kg
Static tipping load (ISO/DIS 14397-1) - at full 40º turn: 3673 kg
Bucket capacity: 0.88 m3
Tires: 12.5 – 20R (340/70/20) or 405/70/20
Weight of the machine ready for work: 5600 kg
Standard equipment of ATLAS AR 420
Voltage: 12V
Battery: 12V / 100 Ah
Generator: 14V / 95 A
Starter: 12V / 2.6 kW
Hydrostatic drive system
Speed regulation - crawling and fast (so-called tortoise - hare)
Pre-air filter
Standard maximum speed 20 km/h
100% differential lock included on the front and rear axles - mechanical
Articulated frame, rigid axles with planetary gear, all-wheel drive
Wet multi-disc brakes
Z-type kinematics with hydraulic quick coupler
Additional circuit with quick connectors
Soundproof cabin equipped with ROPS protective structure
Smooth adjustment of the steering wheel
Entrance on both sides, doors on the right and left.
Sun visor, hangers, lights, storage compartments
Central dashboard with indicators: glow plug heating, engine temperature, fuel level, operating hours counter and indicators for oil pressure, engine overheating, hydraulic oil temperature, battery charging, handbrake and air filter
Multifunctional lever for controlling work equipment
Indication of forward/reverse driving range and idle speed
Hydraulic controls
Adjustable windshield air flow, heated rear window
Rear and front window wipers and washers
Work lighting front and rear, reversing lamps
Folding exterior mirrors
Compliant with STVZO* and CE (*Regulations on the admission of vehicles to traffic)
