NPK B5500

Cena bez DPH

Nabídněte cenu

Compnay LOGO
Images4
NPK B5500 Linky na zpracování kameniva
NPK B5500 Linky na zpracování kameniva
NPK B5500 Linky na zpracování kameniva
FavoriteOblíbená
sharePodíl
Save searchUložit vyhledávání
Tisk

INFO

Kategorie
Linky na zpracování kameniva
Značka/model
NPK B5500
Rok výroby
2022
Stav
Nové/nepoužité
Umístění stroje
North Las Vegas, Nevada
Stát
Spojené státy
Mascus ID
60AFF5AA

PODROBNOSTI

Vyrobeno ve státě
Spojené státy
Další informace

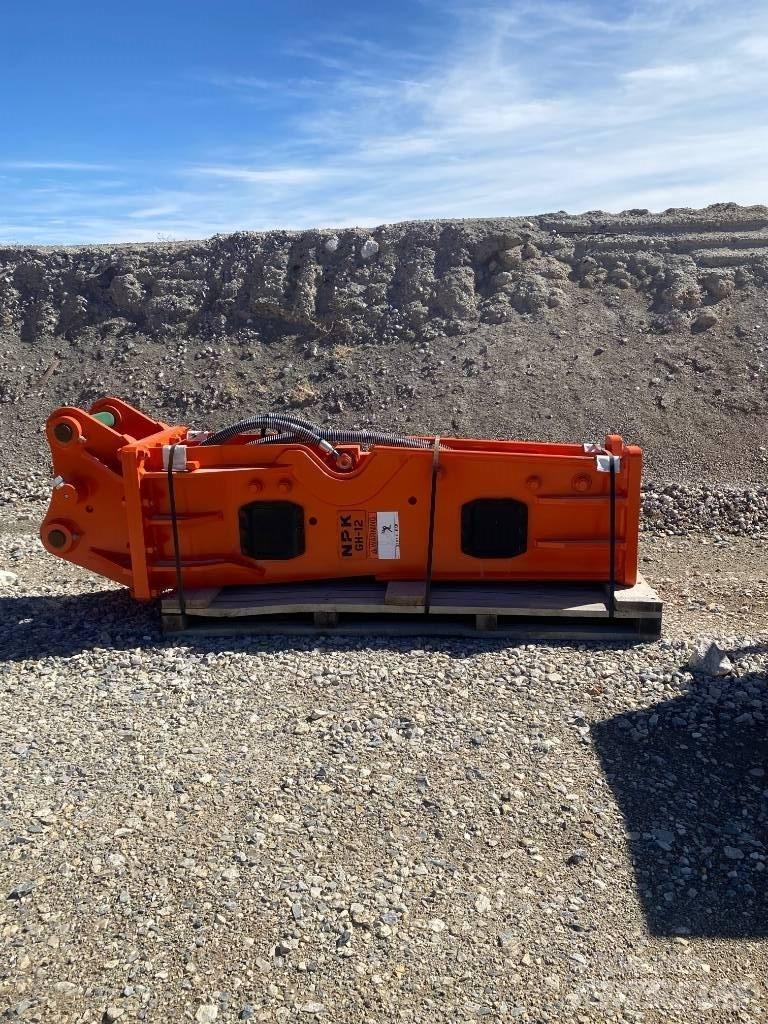

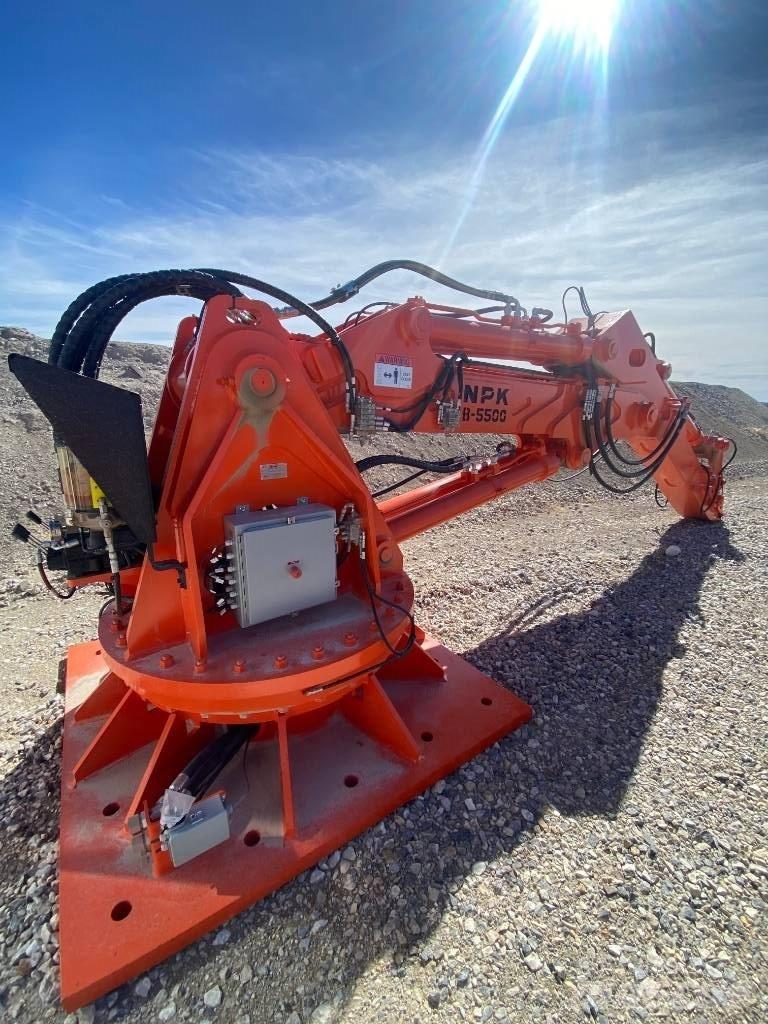

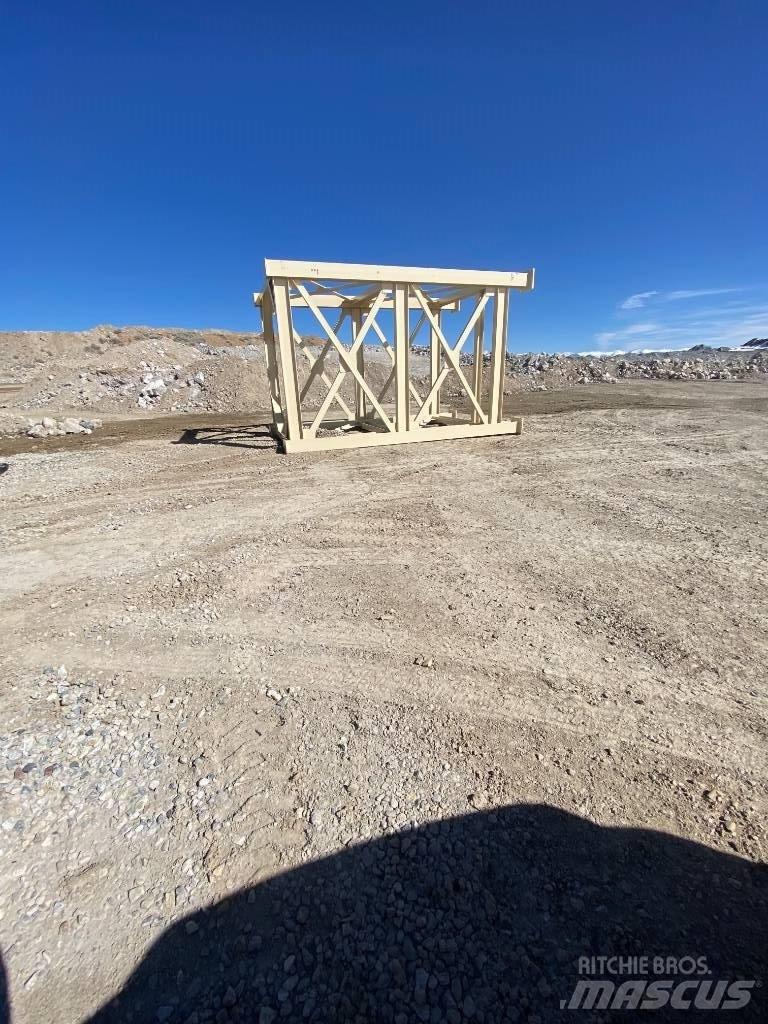

Complete System B5500 with GH-12 on ICM Hammer Stand 1.1 Model B5500 – Pedestal Unit • 21.9ft (6.7m) Heavy Duty Hydraulic Pedestal • 48” Slew ring bearing 280+ degree swing with adjustable stops • Heavy duty twin boom and twin stick cylinders • Lifting eyes on base and stick • Oversized hardened pins and bushings at every joint • Laminated reinforced steel pivot points • See “Option Below” for all pedestal options. 1.2 Model HP125 - Hydraulic Power Unit • 125HP electric motor, 480V, 3ph, 60Hz (if a different voltage or hertz is required, please let your dealer or NPK know as this may change the price and/or delivery) • Elevated Hydraulic reservoir 150-gallon tank with internal baffle and large clean out port • Load sensing and pressure compensated piston pump • Visual sight and temperature glass • Breather filler assembly • Suction strainer with oil shut off • Return filter w/dirty indicator • High pressure filter w/dirty indicator • Pressure gauge 0-5000 PSI • (Starter, heater and cooler not included in Item 1) if NPK Starter is purchased the power unit will be 100% self-contained with only one customer electrical connection required. • See “Options Below” for all power unit options. 1.3 Electric / Hydraulic Controls • Danfoss Plus+1 control system • Joystick control console w/ two (2) proportional joysticks, display screen, and key switch (screen pages may vary depending on options chose) • Junction box mounted on pedestal with wire harness • Solenoid driven multi-Valve (5 section) • 12Vdc power supply (110Vac/230Vac to 12Vdc) • 150ft control cord; if a longer cord is required cord length must be specified at time of order (price adder may apply). • All boxes and components meet or exceed IP65 NEMA 4   2.4 GH-12 Hammer • 5,500 ft- lbs. Impact Energy Class • Heavy duty hydraulic breaker • Hidden hammer hoses (hoses routed inside bracket) • Mounting kit (pins, hoses, retainer bolts) • Blunt tool (if different tool is required, please specify when ordering may change the price). ICM Stand Free Standing Hammer Stand with stairs and structure for Operators CabZobrazit další

ICM Solutions

4055 S 500 W 84123 Murray Utah Spojené státy
