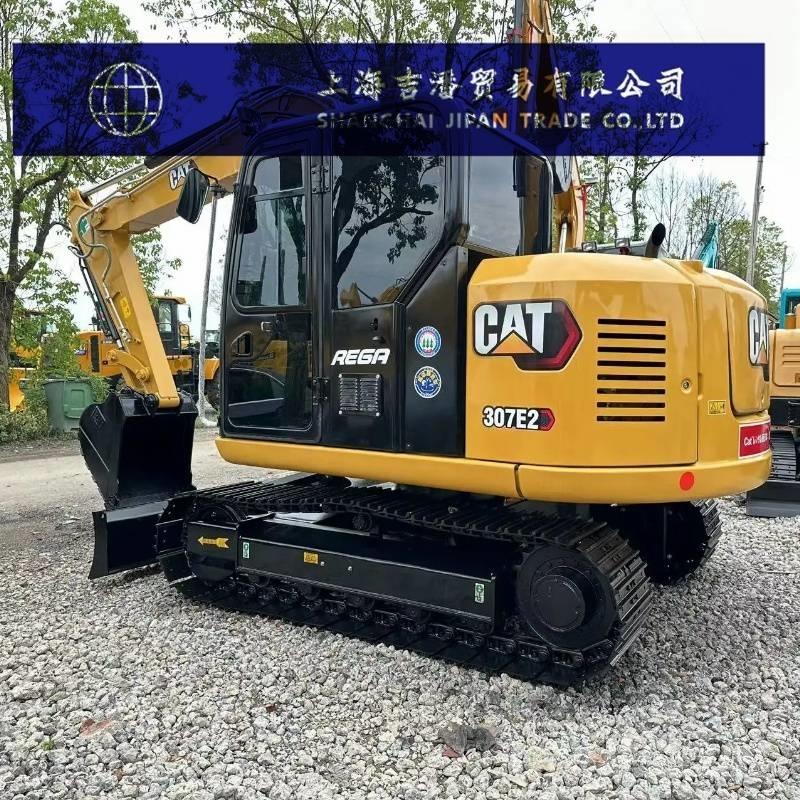

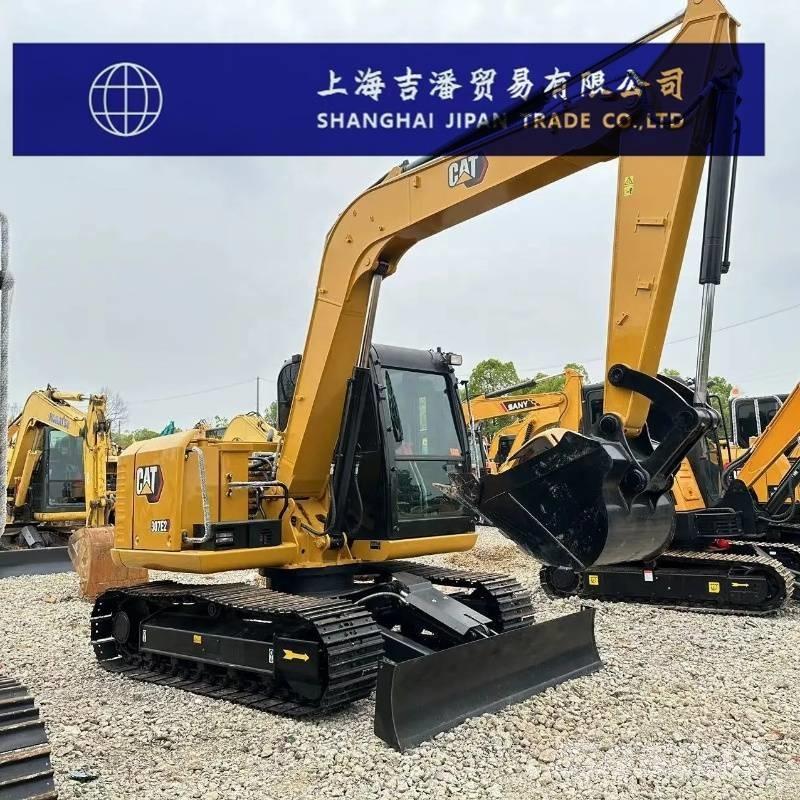

CAT 307

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)7 整机工作重量(kg)7023-7435 铲斗宽度(mm)854 铲斗容量(m³)UD 0.33 动臂长度(mm)3700 斗杆长度(mm)1665 性能 回转速度(rpm)10.8 回转扭矩(Nm)16.3 行走速度(km/h)3.2~5.1 铲斗挖掘力(kN)53.2 斗杆挖掘力(kN)36.3 最大牵引力(kN)56.9 动力系统 发动机型号Cat® C2.4T 额定功率(kw/rpm)36.5/2400 排量(L)2.43 缸径×行程(mm)87×102 排放标准国Ⅳ 液压系统 主泵类型可变排量活塞泵 主泵最大流量(l/min)147 工作液压油路(Mpa)28.5 行走液压回路(Mpa)28.5 回转液压回路(Mpa )24 油类容量 燃油箱(L)165 液压油箱(L)51 液压系统(L)94 发动机油更换量(L)10.2 冷却液(L )10 主体尺寸 运输总长度(mm)6055 运输总宽度(mm)2300 运输总高度(mm)2630 履带接地长度(mm)2120 履带总长度(mm)2760 履带板宽度(mm)450 最小离地间隙(mm )360 配重离地间隙(mm)760 后端回转半径(mm )1750 作业范围 最大挖掘半径(mm)6300 停机面最大挖掘半径(mm)6160 最大挖掘深度(mm)4070 最大挖掘高度(mm)7240 最大卸载高度(mm)5200 推土板宽度×高度(mm)2300*450 推土铲举升或推深(mm)390/350
