Unic B-506-5.2
Cena bez DPH
Nabídněte cenu
Tisk
INFO
Kategorie
Minijeřáby
Značka/model
Unic B-506-5.2
Rok výroby
2016
Najeté motohodiny
767 h
Umístění stroje
Duisburg, Nordrhein-Westfalen
Stát
Německo
Obecný stupeň
1
2
3
4
5
Mascus ID
470353FC
PODROBNOSTI
Počet předchozích majitelů
1
Brutto hmotnost
5150 kg
Nosnost
5000 ton
Boom length
15.7 m
Maximální nosnost na konci výložníku
900 ton
Délka výložníku jeřábu
15.7 m
Výška zdvihu
19 m
Výška háku jeřábu - horizontální výložník
16 m
Výška háku jeřábu - kyvný výložník
3 m
Dopravní rozměry (DxŠxV)
4870 x 1400 x 2035 mm
Značka pneumatik
NM-Antriebsketten
Vyrobeno ve státě
Japonsko
Dodací podmínky
FCA, CFR, EXW
Certifikace
CE, TÜV
Příslušenství
Hook blocks
3-rollig, max. 5,0 t
1-rollig, max. 1,7 t
Einseilhaken, max 0,9 t
Další informace

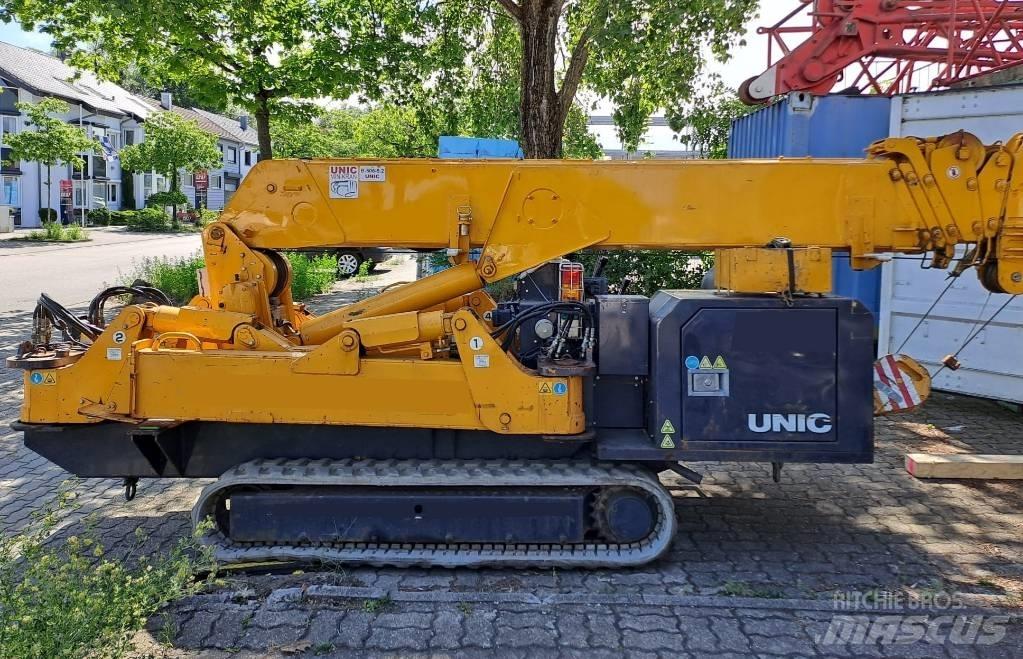

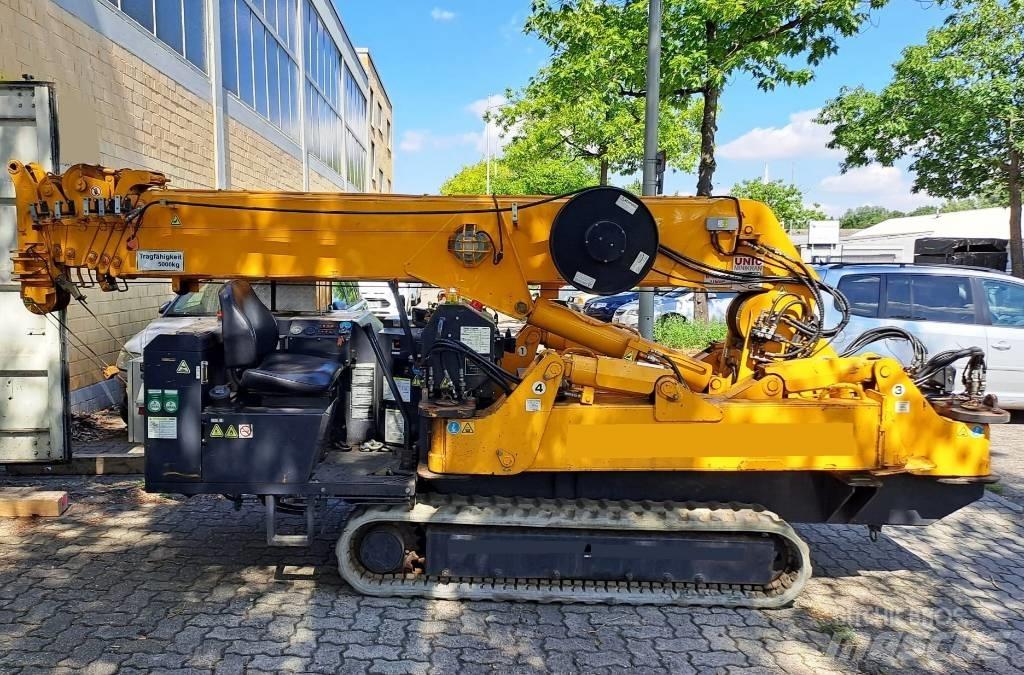

UNIC mini crawler crane, model B-506-5.2, year 2016, (used)
only 767 h working hours
incl. German DEKRA approval
max. loading capacity 5,0 t
TECHNICAL DETAILS:
Max. Loading 5.0 t x 2.0 m
Max. Hook height 19.0 m
Max. Working area 16.5 m
Dimensions: length 4870 mm (L) x 1400 mm (W) x 2035 mm (H)
Weight approx. 5.150 kg
STANDARD EQUIPMENT:
3.93 – 15.71 m telescopic main boom fully hydraulic
Boom head with 3-sheaves
3,0 m folding jib with sheave head and searcher hook, max. 850 kg, hydr. adjustable 0-20°
1,0 m jib, max. 1,7 t, hydr. adjustable 0-20°
1x hoist winch
German rope, low-spin, fine braided
360 ° rotation range (continuous), Diesel engine 18 kW (24,5 HP)
Electric drive 380 V (AC 50/60 Hz, power 7,5 kW) with cable 50,0 m
Radio remote control
Safe load indicator Rayco Wylie Systems i4500
Variable footprint, computer controlled, variable positioning of each outrigger length (mininum, half, maximum),
automatic detection of the outrigger position and calculation of the max. load of each outrigger
Overwinding alarm, computer controlled intelligent voice warning system
working lights, driver´s seat, Hydrostatic drive, step-less forward and reverse Speed 0 – 3,0 km/h,
Track ground length 1.800 mm,
Track ground width 300 mm
Track ground pressure 0,46 kg/cm2
Hook block 3-sheaves, max. loading capacity 5,0 t
Hook block 1-sheave, max. loading capacity 1,7 t
Ball, max. loading capacity 900 kg
Superstructure yellow, Chassis Black-grey
Ideal for limited work areas or confined access to the work area and an intelligent solution and alternative to the conventional mobile crane (large crane)
Various mini crane models with lifting capacities of 0.99 - 10.0 t lifting heights up to 31.0 m
Used mini crane models on demand until 8.0 t loading capacity.
Mini & Mobile Cranes Körner GmbH
Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Německo
