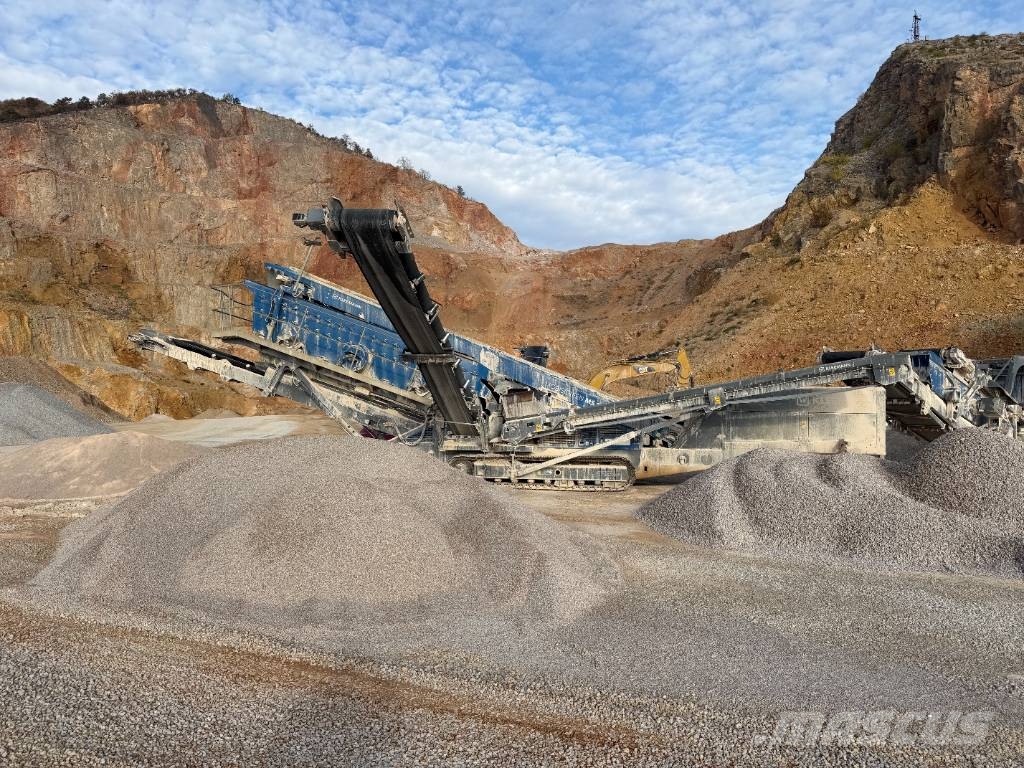

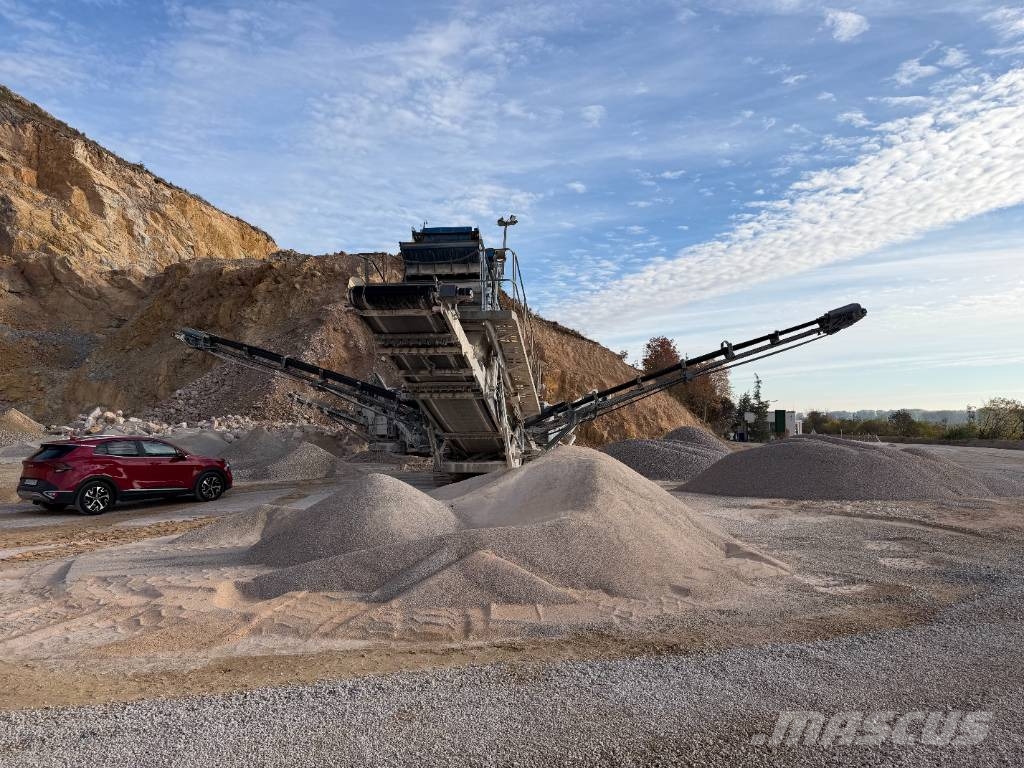

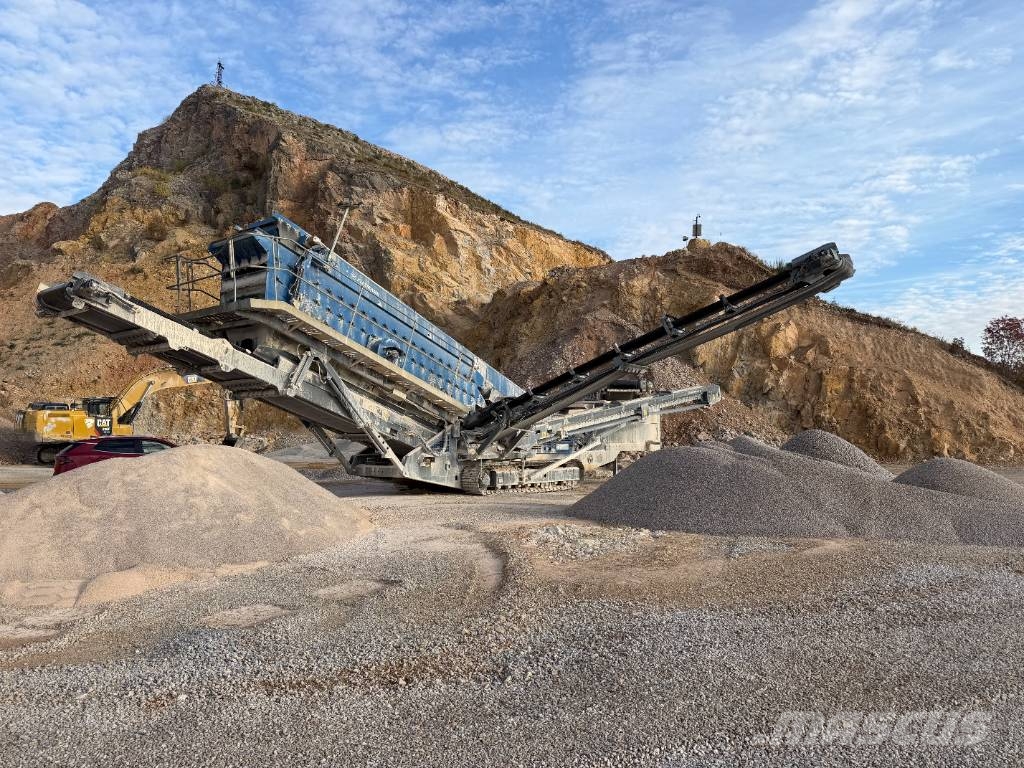

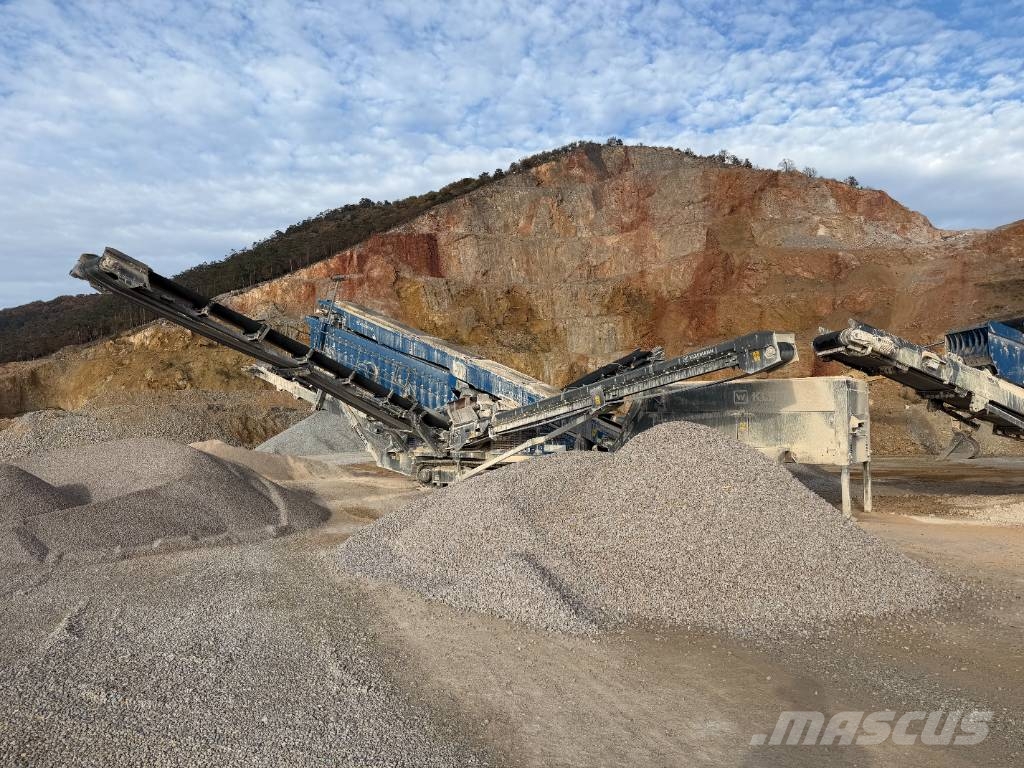

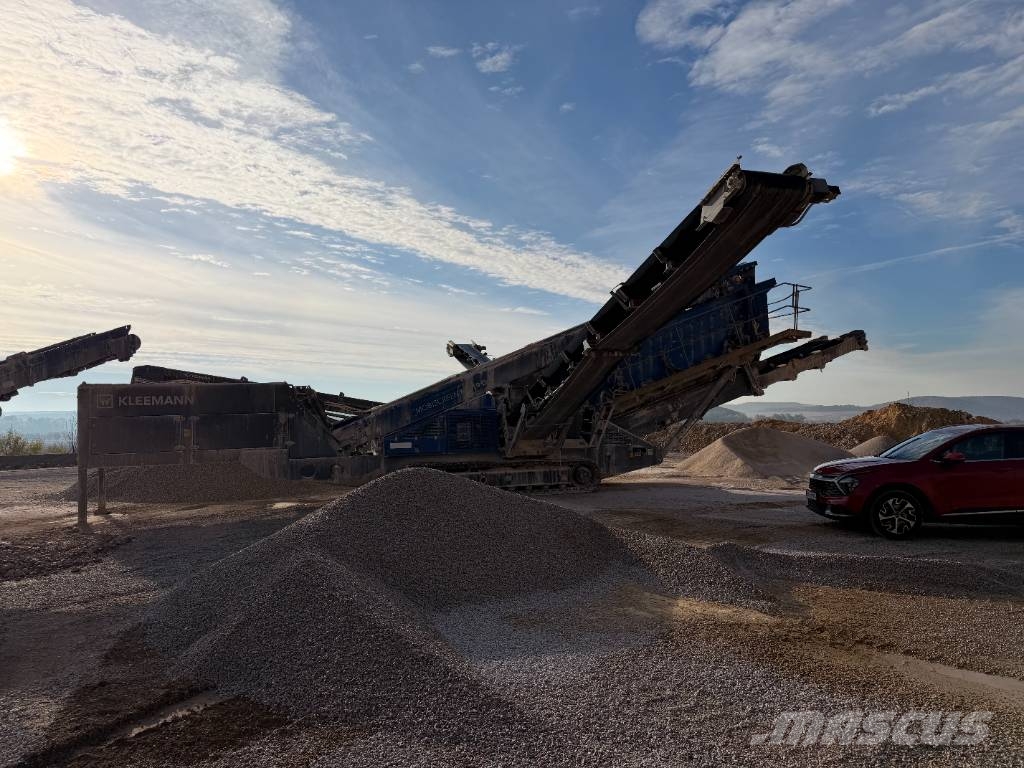

Kleemann MS 19 D

Feeding unit Feed capacity up to approx. (t/h) 500 Feed size max. (mm) 150 Feed height (mm) 3,635 Hopper capacity (m3 ) 8 Belt conveyor feeder Width x length (mm) 1,200 x 3,500 Type (optional) variable speed Feeding belt conveyor screen Width x length (mm) 1,050 x 11,800 Screening unit Type triple-deck vibration screen Top deck width x length (mm) 1,520 x 6,100 Middle deck width x length (mm) 1,520 x 6,100 Bottom deck width x length (mm) 1,520 x 5,490 Bottom deck underflow discharge conveyor (fine fractions) Width x length (mm) 1,200 x 8,000 Discharge height approx. (mm) 4,600 Bottom deck overflow discharge conveyor (medium fractions 1) Width x length (mm) 800 x 10,300 Discharge height approx. (mm) 5,100 Middle deck overflow discharge conveyor (medium fractions 2) Width x length (mm) 800 x 10,300 Discharge height approx. (mm) 5,100 Belt conveyor oversize fractions Width x length (mm) 650 x 1,800 Top deck overflow discharge conveyor (oversize fractions) Width x length (mm) 500 x 8,500 Discharge height approx. (mm) 4,900 Drive Drive concept diesel-hydraulic Powerpack CAT (Tier 3, 4f) (kW) 95 Transport Transport height approx. (mm) 3,450 Transport length approx. (mm) 17,600 Transport width approx. (mm) 3,100 Transport weight approx. (kg) 36,500
