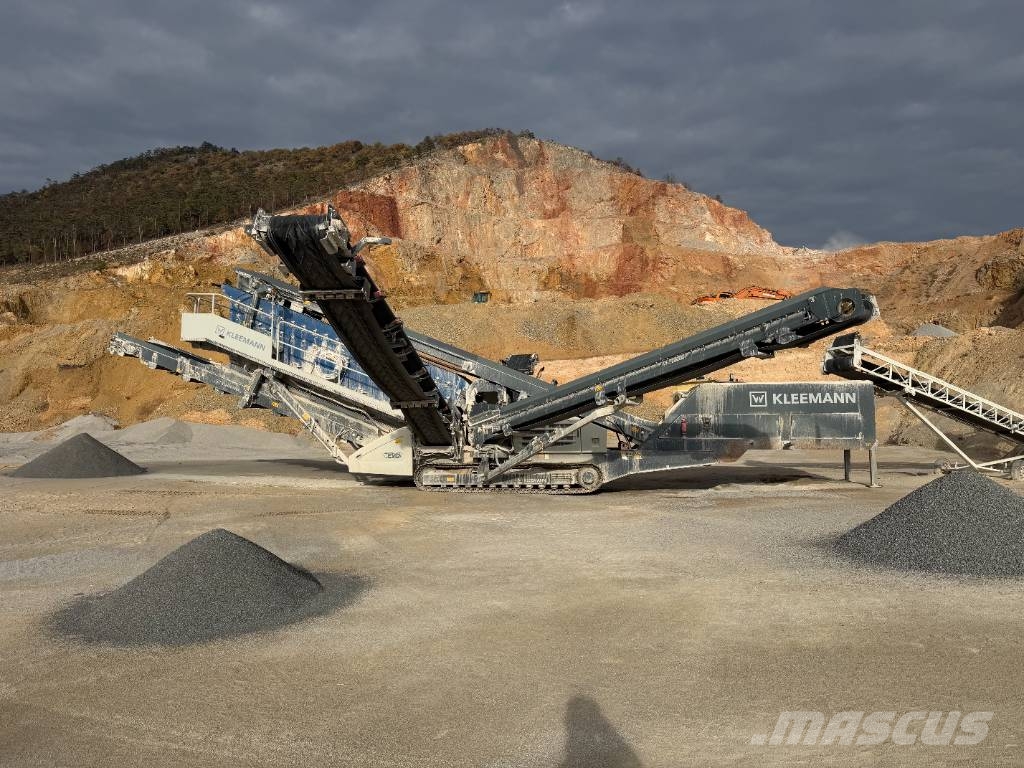

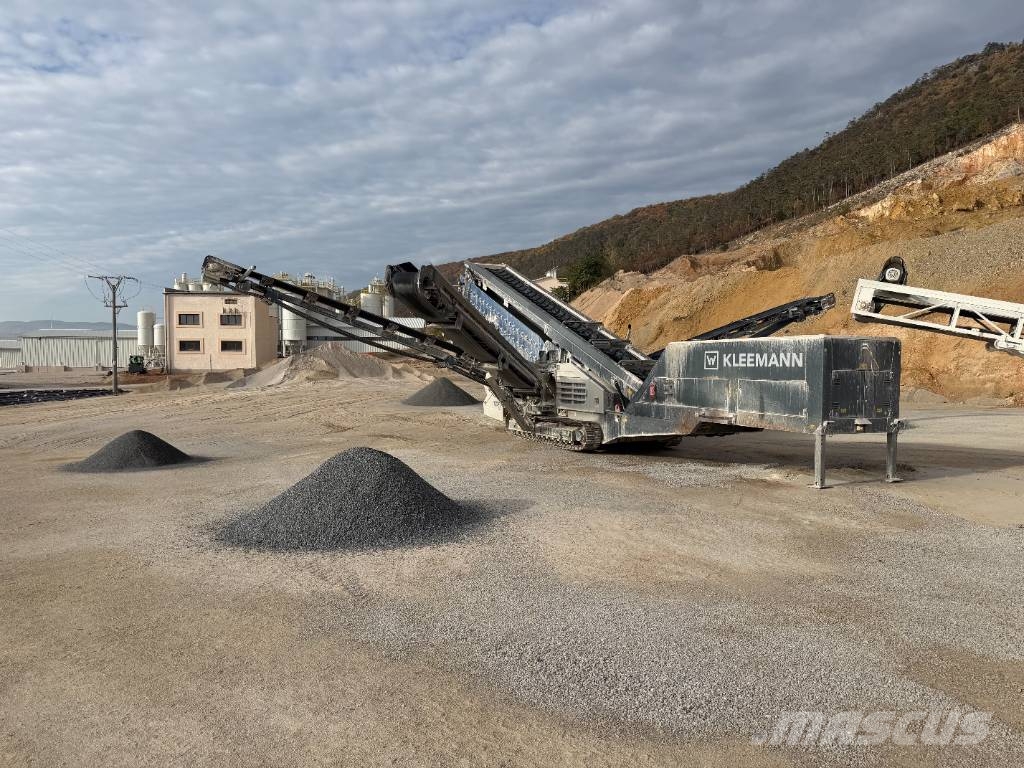

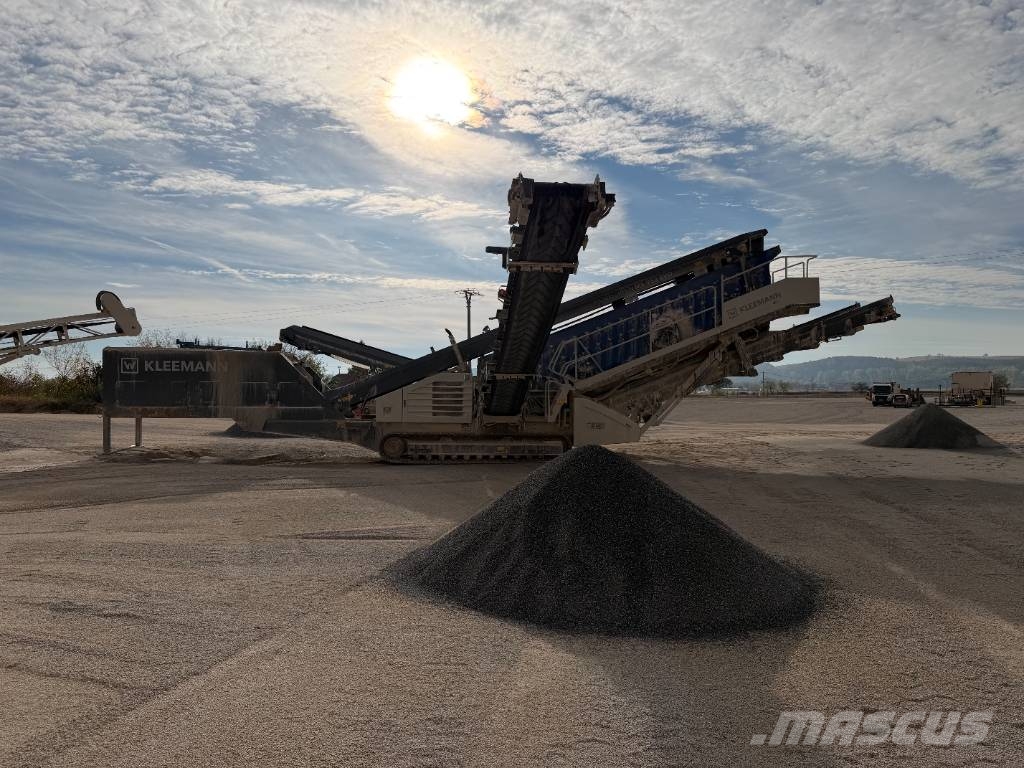

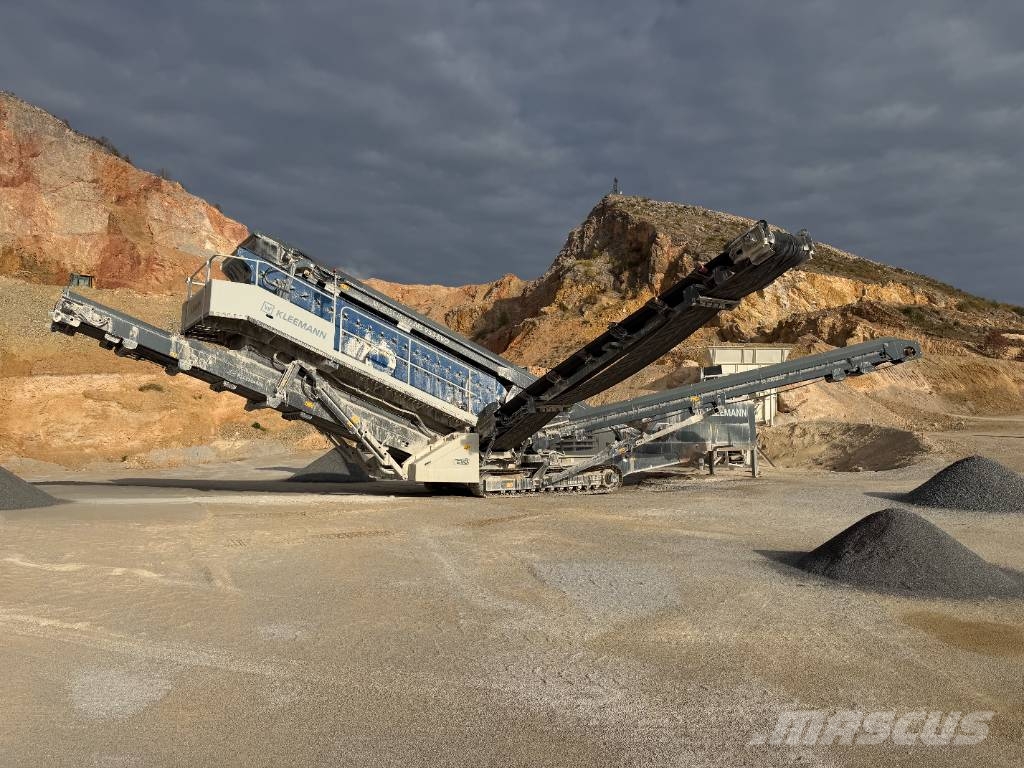

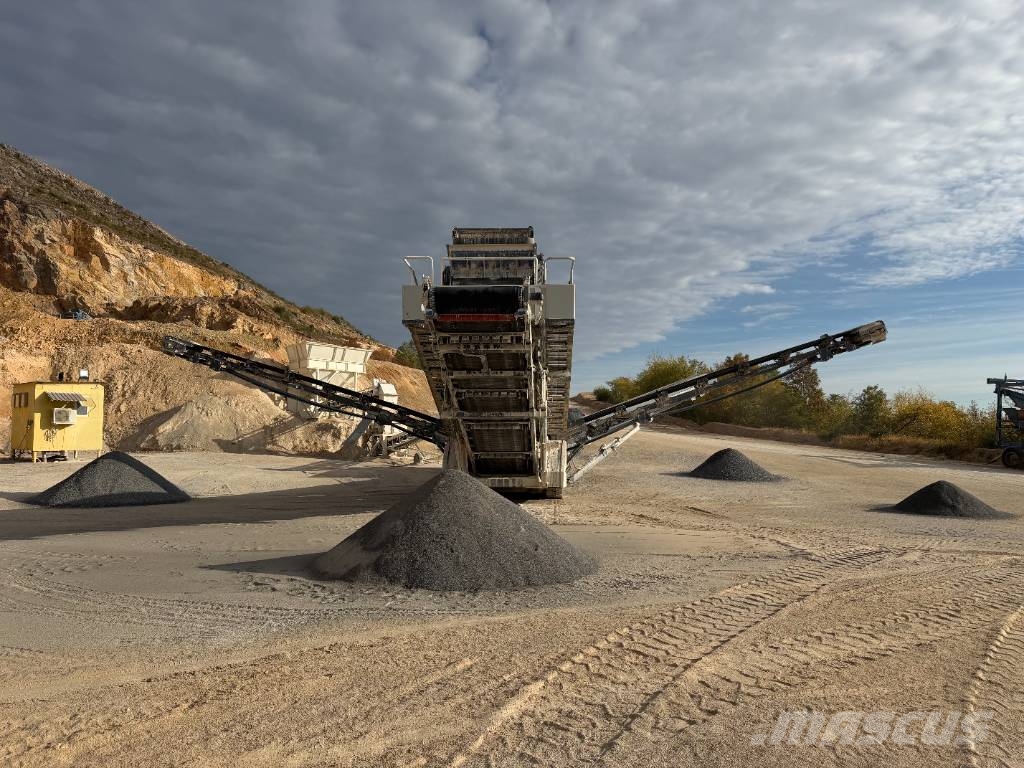

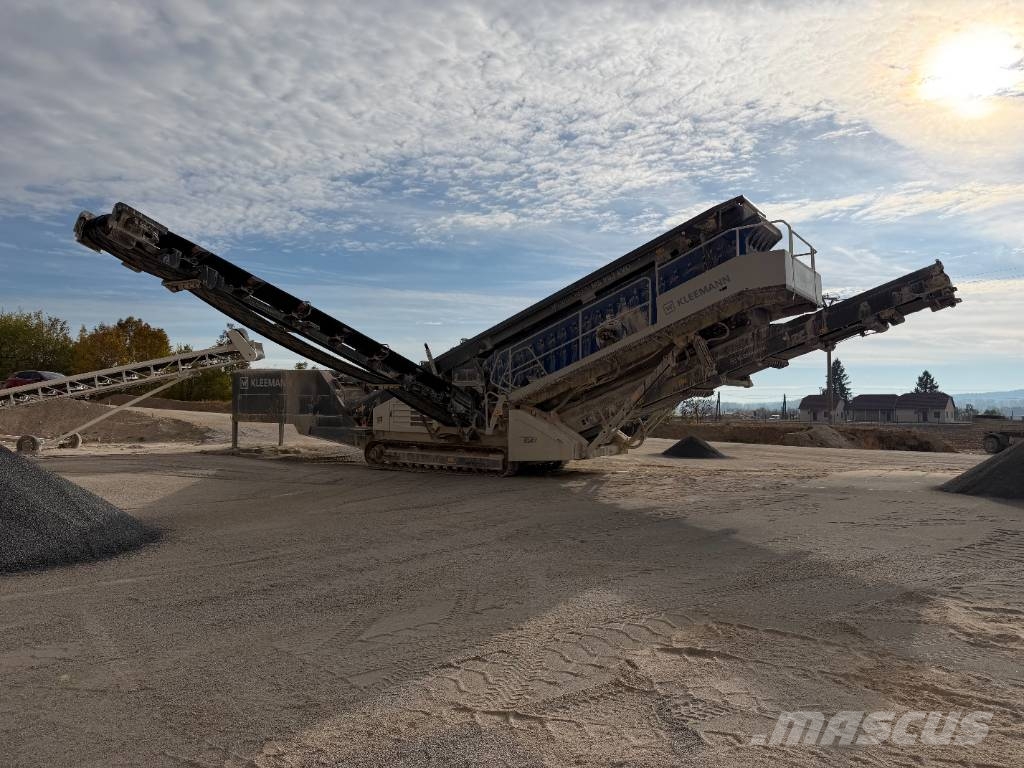

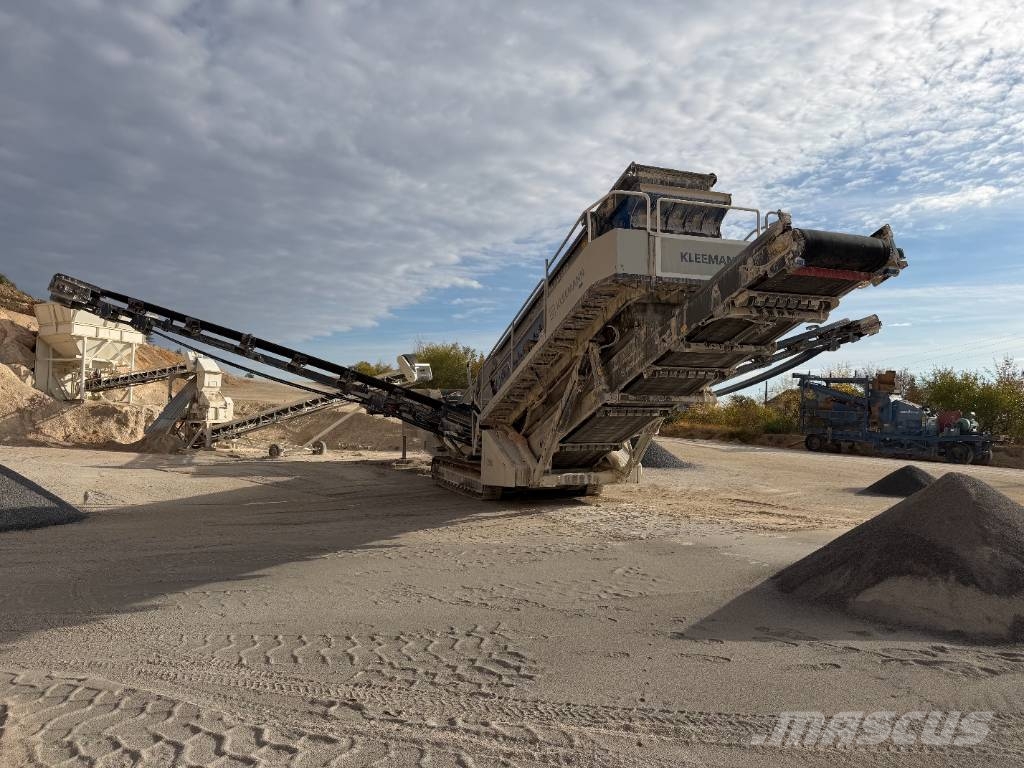

Kleemann MS 953 EVO

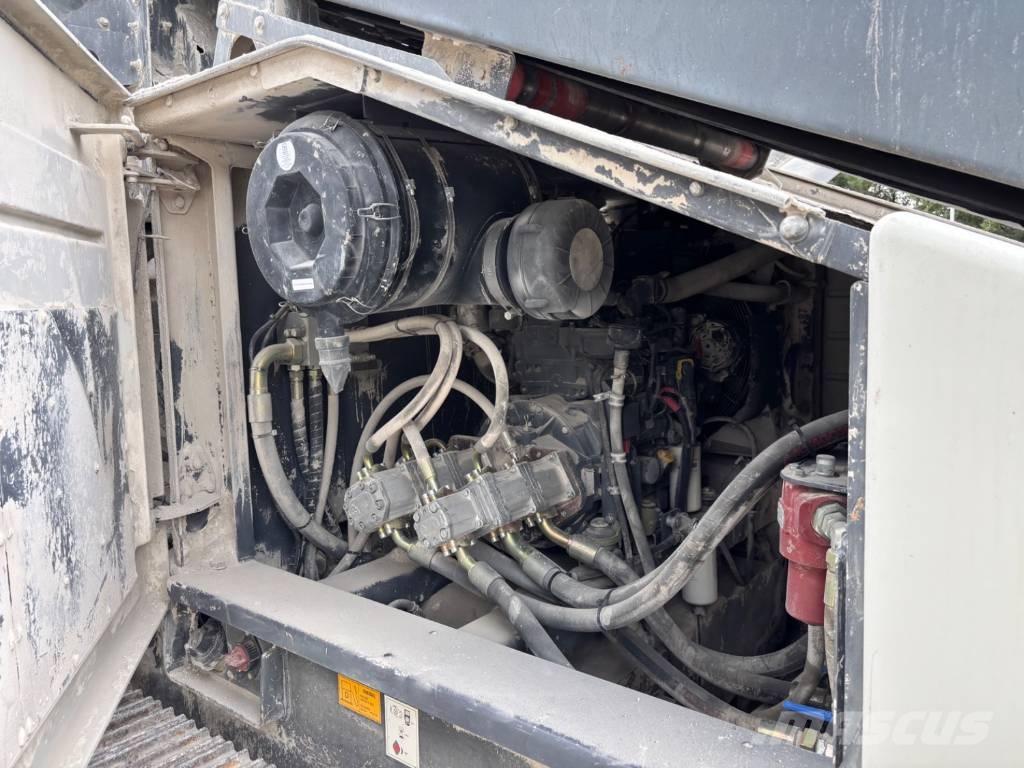

Feeding unit Feed capacity up to approx. (t/h) 500 Max. feed size (mm) 100 x 160 (350) Feed height – foldable slotted grate (mm) 3,580 Hopper volume (m³) 8 Hopper discharge conveyor Width x Length (mm) 1,200 x 3,500 Feeding conveyor Width x Length (mm) 1,200 x 12,000 Screening unit Type Triple-deck classifying screen Width x Length (mm) 1,550 x 6,100 Fine grain discharge conveyor Width x length (extended) (mm) 1,200 x 8,100 Discharge height approx. (mm) 3,300 – 4,500 Discharge conveyor overflow lower deck (medium grain) Width x Length (mm) 800 x 10,200 Discharge height approx. (mm) 5,000 Discharge conveyor overflow centre deck (medium grain) Width x Length (mm) – 800 x 10,200 Discharge height approx. (mm) – 5,000 Transfer conveyor Width x Length (mm) – 650 x 1,800 Discharge conveyor overflow upper deck (oversize grain) Width x Length (mm) 500 x 8,900 Discharge height approx. (mm) 5,020 Power supply unit Drive concept diesel-hydraulic Power pack manufacturer stage 3a Deutz Power pack manufacturer stage V John Deere Power supply unit output (kW) 87 – 99 Transport position dimensions Height approx. (mm) 3,385 Length approx. (mm) 17,960 Width approx. (mm) 3,200 Transport weight basic system – max. equipment approx. (kg) 37,000 - 44,500
