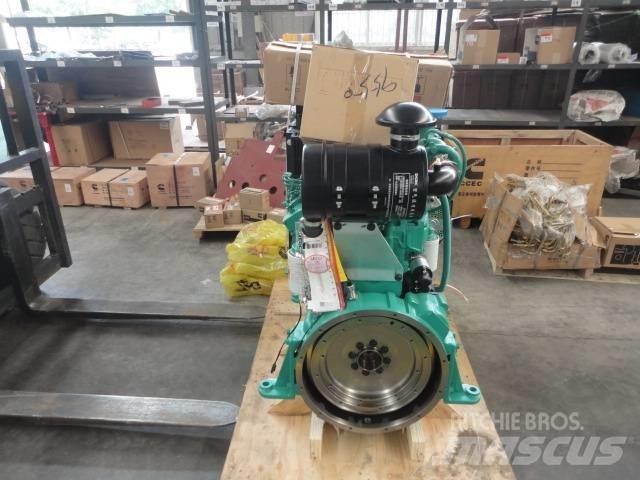

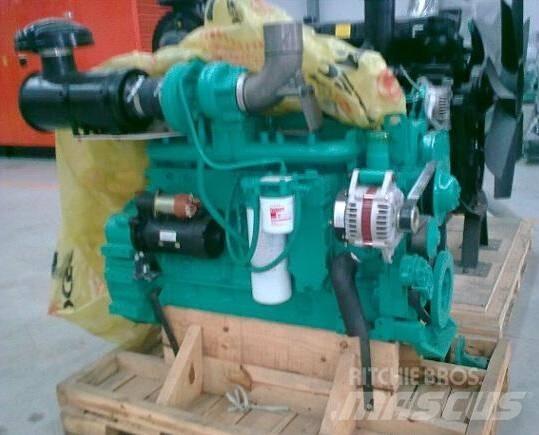

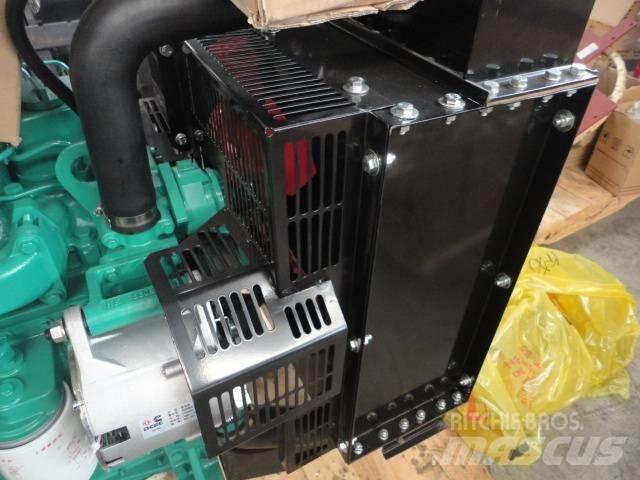

Cummins 6BT5.9-G1

Cummins 6BT5.9-G1 G-Drive Diesel Engine General Information Engine Model 6BT5.9-G1 Engine Type 6 Cylinders in Line Displacement 5.9 L Bore*Stroke(mm) 102 * 120 CPL Number 1189-02 Net Weight (with flywleel & alternator) 411Kg Overall Diemension(L*W*H) 1110mm*750mm*988mm Technical Specification Fuel System Wuxi Weifu A Pump/RSV Mechanical Governor Aspiration Turbocharged Governing Rate 5% Electrical System(Starter Motor/Alternator) 12V/24V Lowest Starting Temp without auxiliary system -12℃ Engine Cooling Fluid Volume 9.9 L Performance Data Rated Power/Speed 86 kW/115HP @ 1500rpm Torque @ Rated Power 548 N.m @ 1500 rpm Standby Power/Speed 92 kW/123HP @ 1500rpm Torque @ Standby Power 586 N.m @ 1500 rpm Fuel Consumption @ Rated Power 214g/Kw.h Fuel Consumption @ Standby Power 221g/Kw.h Idel Speed 700 – 750 rpm
