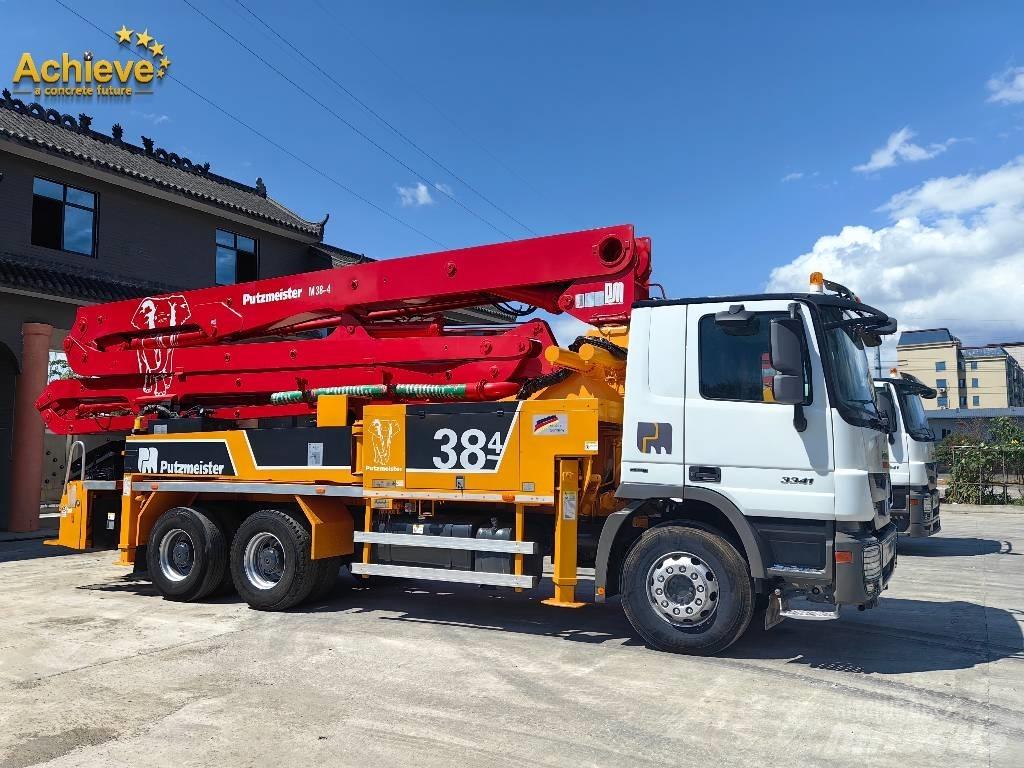

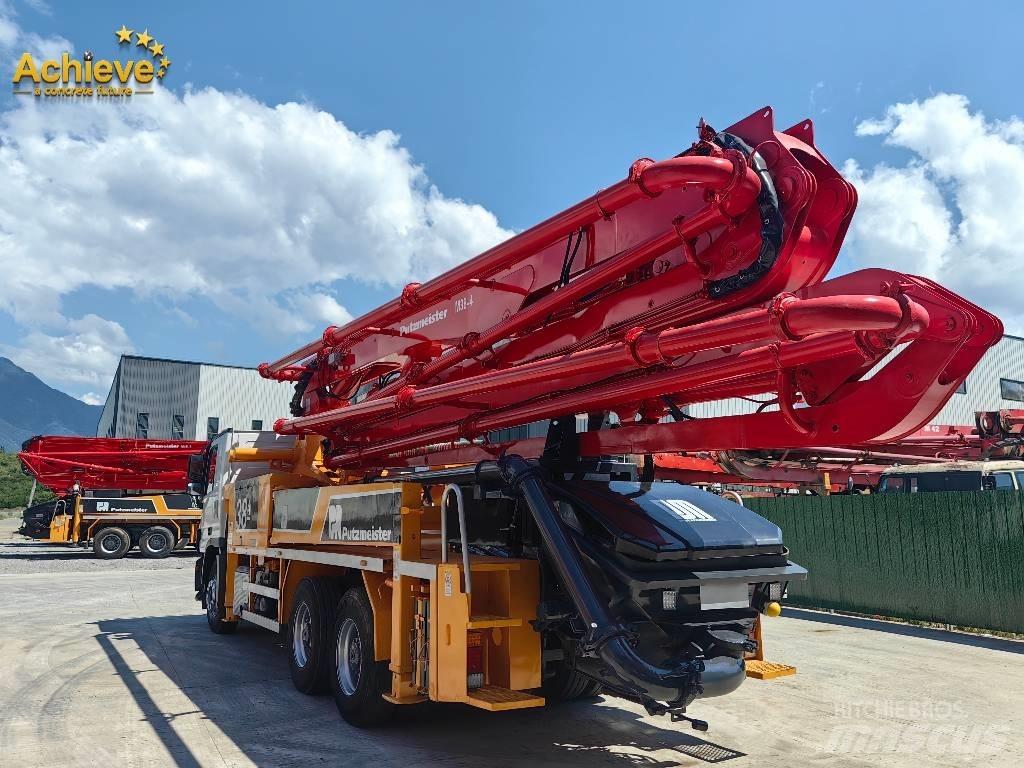

Putzmeister M38-4

Technical Details General Information Arms 4 Folding Type Z-Folding Vertical Reach 38.30 m Horizontal Reach gross 33.60 m Horizontal Reach net 30.70 m Reach Depth 24 m Unfolding Height 9 m Slewing Range 365 degree End Hose - Length 3 m End hose - Diameter 125 mm Delivery Line (DN, Pressure) 125/85 mm/bar Configuration Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 230/2100 mm Output (rod side) 160 m³/hr Delivery Pressure (rod side) 85 bar Strokes (rod side) 31

Putzmeister’s M39-4 Truck-Mounted Concrete Boom Pump comes equipped with a newly designed four-section Z boom that can either be permanent or detachable. It’s a jack-of-all-trades that can achieve typical and high-rise pumping applications as well as frost law and special weight considerations. We’ve listened to our user feedback and put it into action. Rather than purchasing three separate pieces of equipment, customers will benefit from the value of a single, customizable machine. Key Features Easy replacement of the radio remote control thanks to radiomatic(R) iLOG Technology Lithium ion battery for a working time of up to 17 hours Putzmeister concrete pump technology is designed to withstand extreme conditions as it performs in high- pressure and long-distance pumping applications
