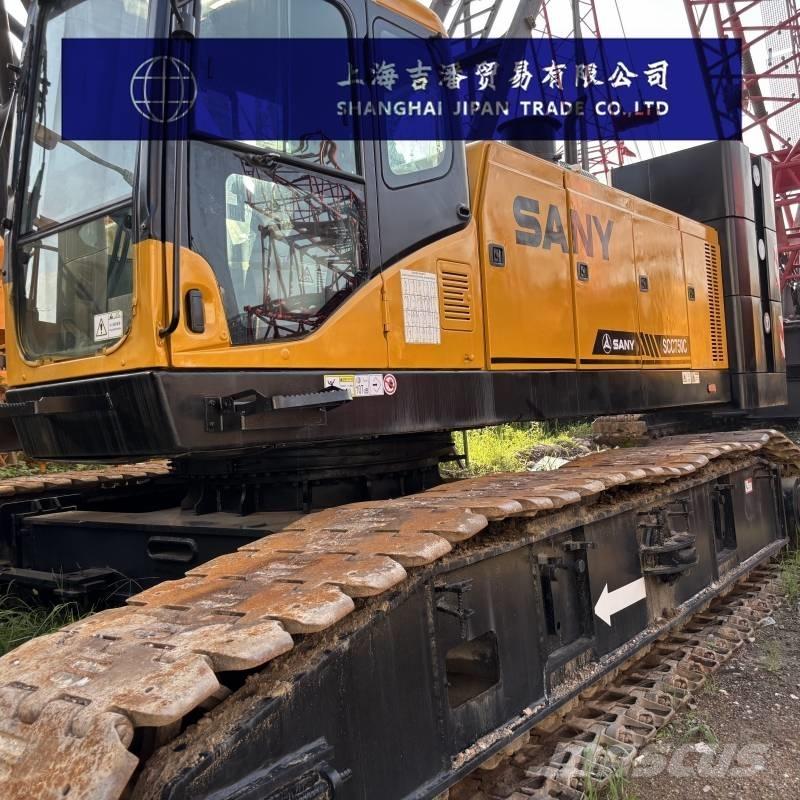

Sany SCC 750 C

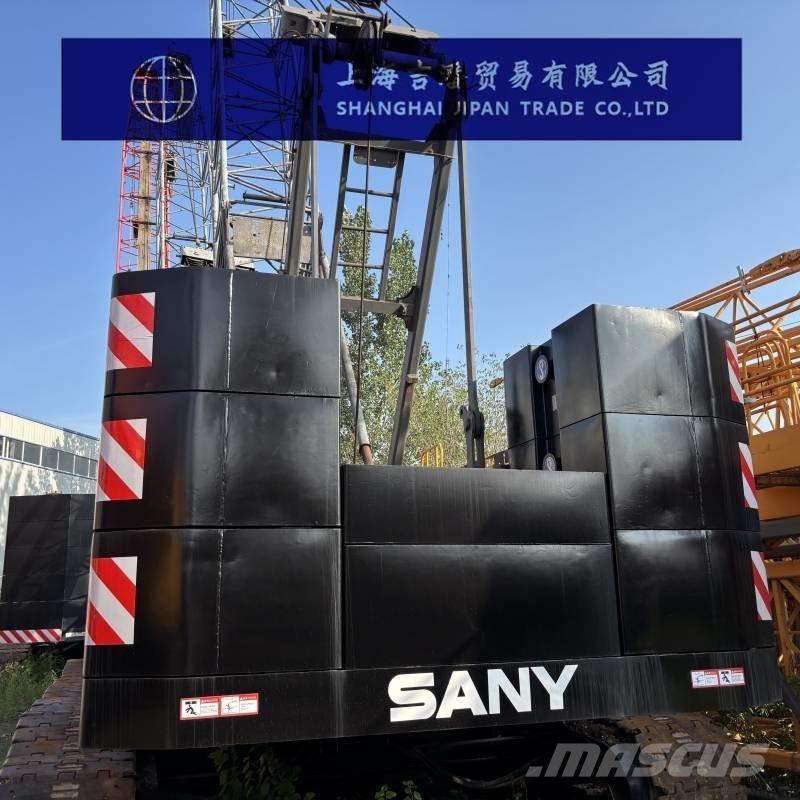

Fly Jib Hook Counter Weight We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic parameters Maximum rated lifting capacity: 75 tons Maximum rated lifting moment: 71×4t·m = 284t·m Basic arm length: 12 meters Engine parameters Model: Weichai WP13 Type: Straight-six cylinder, water-cooled, electronically controlled, turbocharged, air-to-air intercooled Displacement: 12.5L Rated power: 390kW/2100rpm Maximum torque: 2300N·m/1200-1600rpm Cooling system: Water-cooled Starting device: 24V-8.5kW Radiator: Aluminum plate-fin radiator core Air filter: Dry replaceable paper filter element Hand throttle: Twist-grip type hand throttle, electric Fuel filter: Replaceable paper filter element Battery: 2 12V×180Ah capacity batteries, connected in series Emissions: Comply with the third-stage emission standards for non-road motorized equipment in China Fuel tank: 1000L Parameters of the hydraulic system Main pumps: 2 plunger pumps Control: Main pump load sensitive control, open system Cooling: High-power independent oil dispersion ensures that the hydraulic system operates within the optimal temperature range under heavy load Maximum system pressure: 32Mpa Rotary system: 20Mpa Control system: 5Mpa Hydraulic oil tank capacity: 1000L Mechanism parameters Amplitude variation mechanism Drum pitch circle diameter: 420mm The speed of the outermost rope: 0-55m/min Steel wire rope diameter: 20mm Working length of the steel wire rope: 130 meters Main and auxiliary lifting mechanisms The pitch circle diameter of the main hoisting hoist drum is 576mm The rope speed of the third layer of the main hoisting hoist is 0-110m/min The diameter of the main hoisting wire rope is 26mm The working length of the main hoisting wire rope is 180 meters The rated single-rope tensile force of the main hoisting winch is 118kN The pitch circle diameter of the auxiliary hoisting hoist drum is 630mm The rope speed of the third layer of the auxiliary hoisting hoist is 0-120m/min The diameter of the auxiliary hoisting wire rope is 26mm The working length of the auxiliary hoisting wire rope is 120 meters The rated single-rope tensile force of the auxiliary hoisting winch is 118kN Rotary mechanism Rotary brake: normally closed, built-in, wet, spring-loaded plate brake, spring force braking, oil pressure release Slewing bearing: Single volleyball slewing bearing Rotary locking: When lifting and moving or transporting, a manual latch can be placed directly in front of the turntable. After the work is completed or transportation is carried out, the turntable can be reliably locked in both the front and rear positions Rotation speed: 0-1.5rpm Size and weight parameters Track plate width: 800mm The basic arm weight of the entire machine is 67,000 kg Rear counterweight weight: 20,000 kg Mainframe transportation weight (with track frame and lower arm) : 44,160 kg Mainframe transportation weight (without track frame) : 28,420 kg The transportation dimensions of the main unit (with track frame and lower arm) : length 12310mm× width 3490mm× height 3290mm Mainframe transportation dimensions (without track frame and lower arm section) : length 7330mm× width 3490mm× height 2860mm Average ground specific pressure (basic arm) : 0.085MPa Performance parameters Main boom operating conditions: Main boom length: 13-40 meters Main arm luffing Angle: 30-80° Walking speed: 1.0km/h Maximum climbing ability: 30% Parameters of the electrical control system It adopts the SYIC-II integrated control system independently developed by Sany, which features high system integration, precise operation and reliable quality. The control system is composed of the power supply system, engine system, main control system, torque limiter system, auxiliary system and safety monitoring system, etc. The controller, display (integrating torque limiter display and remote control terminal), and engine communicate data through CAN bus technology.
