Cifa CSS 2

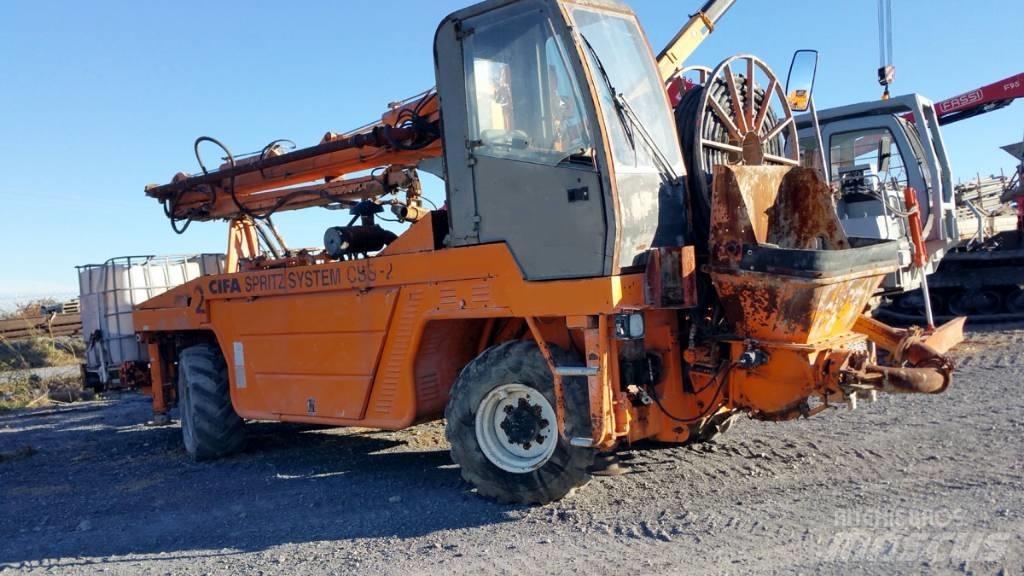

Construction Equipment Tunnel Construction Machine Cifa CSS-2 for Sale Self-Propelled Shotcrete Pump Model CSS 2 Series Technical Specifications Cifa CSS-2 Spraying System: Distribution Boom CSS-2T Pump Group PAS 307 Diesel-Electric Drive 2-Axle Chassis Pump Group Specifications: Model PAS 307 Max. Theoretical Production 30 m Max. Theoretical Pressure 70 bar Max. Cycles per Minute 21 n° Pump Cylinder (Bore x Stroke) 176 x 1000 mm Hopper Capacity 300 l Water Tank 600 l Installed Power (Electric-Diesel) 45 kW Boom Specifications Model CSS-2T Vertical Rotation Angle of Tower 360° Horizontal Rotation Angle of Tower 360° Lifting Angle 1st Section 90° Lifting Angle 2nd Section 180° Length of 1st section: 4.2 m Length of 2nd section: 4 m Telescopic mechanism on 2nd section: 1.5 m Longitudinal rotation of the lance: 45° Transverse rotation of the lance: 90° Longitudinal displacement of the mast: 3.5 m Chassis data Model: Shotruck Installed power: 85 kW 115 HP Steering radius: 5.2 m Chassis tire size: 16x24 Max. load capacity: 16,000 kg Cable winder with hydraulic control and 100 m of cable Accelerator tank: 2,000 liters
