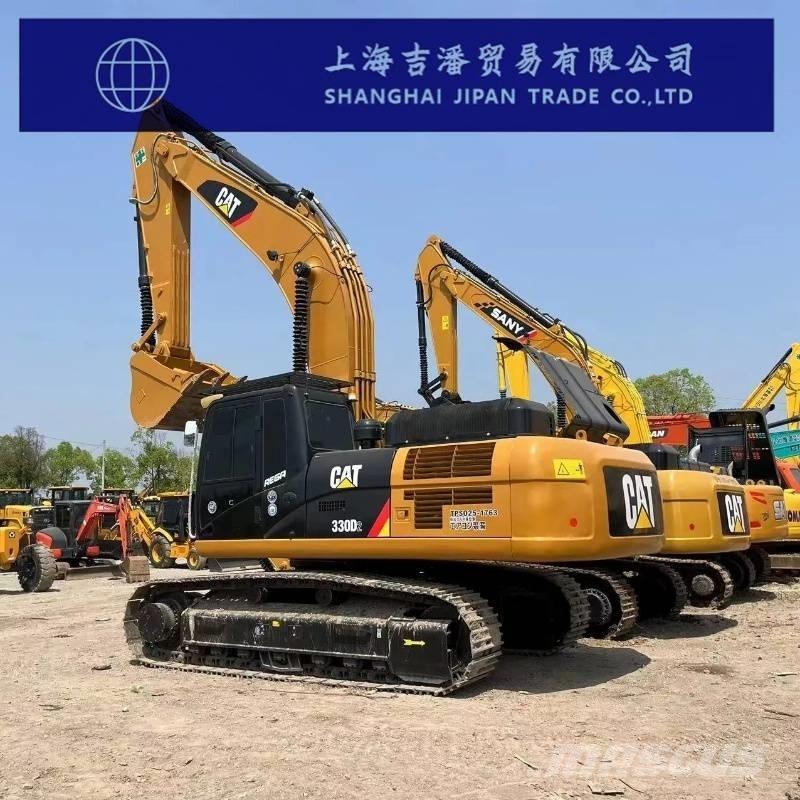

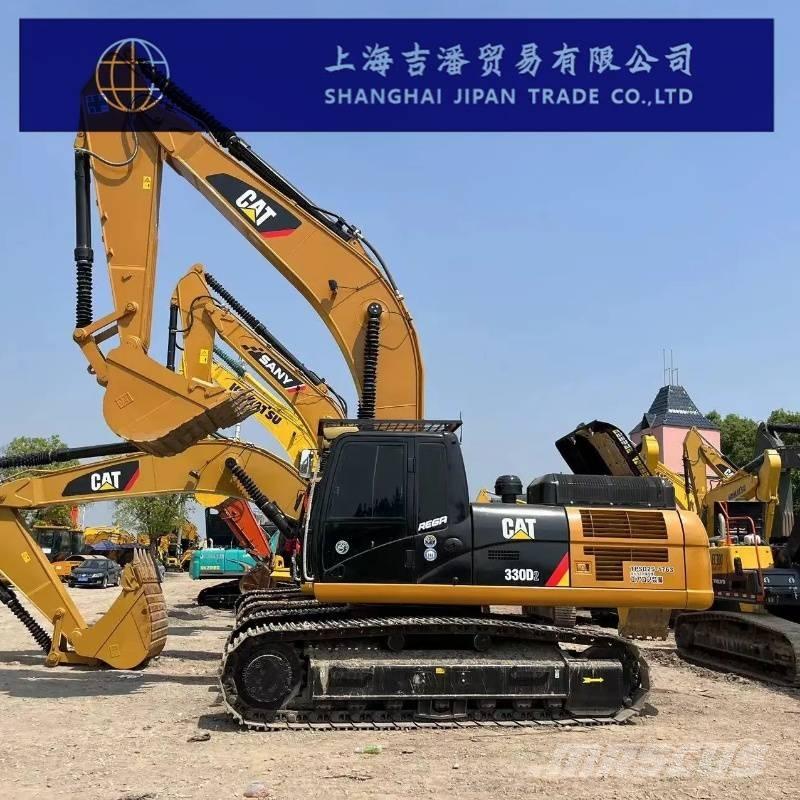

CAT 330 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information Product Model: Crawler Excavator Total Operating Weight: 33,750 kg Bucket Capacity: 1.4-2.0 m³ Country of Origin: Japan Power System Engine Model: C9 ACERT Rated Power: 200 kW / 1900 rpm Displacement: 8.8 L Number of Cylinders: 6 Bore × Stroke: 110 × 127 mm Cooling Method: Water-cooled Hydraulic System Main Relief Setting Pressure: 35 MPa Maximum Flow of Main Pump: 280 L/min Working Hydraulic Circuit Pressure: 35 MPa Travel Hydraulic Circuit Pressure: 35 MPa Swing Hydraulic Circuit Pressure: 28 MPa Pilot Circuit Pressure: 3.9 MPa Boom Cylinder: 1 unit, Bore × Stroke: 150 × 1440 mm Stick Cylinder: 1 unit, Bore × Stroke: 170 × 1738 mm Bucket Cylinder: 1 unit, Bore × Stroke: 150 × 1151 mm Fluid Capacities Fuel Tank Capacity: 620 L Hydraulic Tank Capacity: 175 L Total Hydraulic System Capacity (including tank): 410 L Engine Oil Change Capacity: 40 L Coolant Capacity: 40 L Dimension Details Total Transport Length: 11,150 mm Total Transport Width: 3,190 mm Total Transport Height: 3,340 mm Overall Cab Height: 3,140 mm Counterweight Ground Clearance: 1,220 mm Track Ground Contact Length: 3,610 mm Total Track Length: 4,590 mm Track Shoe Width: 700 mm Total Track Width: 3,190 mm Track Gauge: 2,590 mm Minimum Ground Clearance: 450 mm Rear Swing Radius: 3,500 mm Working Range Maximum Digging Radius at Ground Level: 10,920 mm Maximum Digging Depth: 7,390 mm Maximum Digging Height: 10,240 mm Maximum Dumping Height: 7,200 mm Maximum Vertical Digging Depth: 5,830 mm Maximum Effective Digging Depth: 7,230 mm
