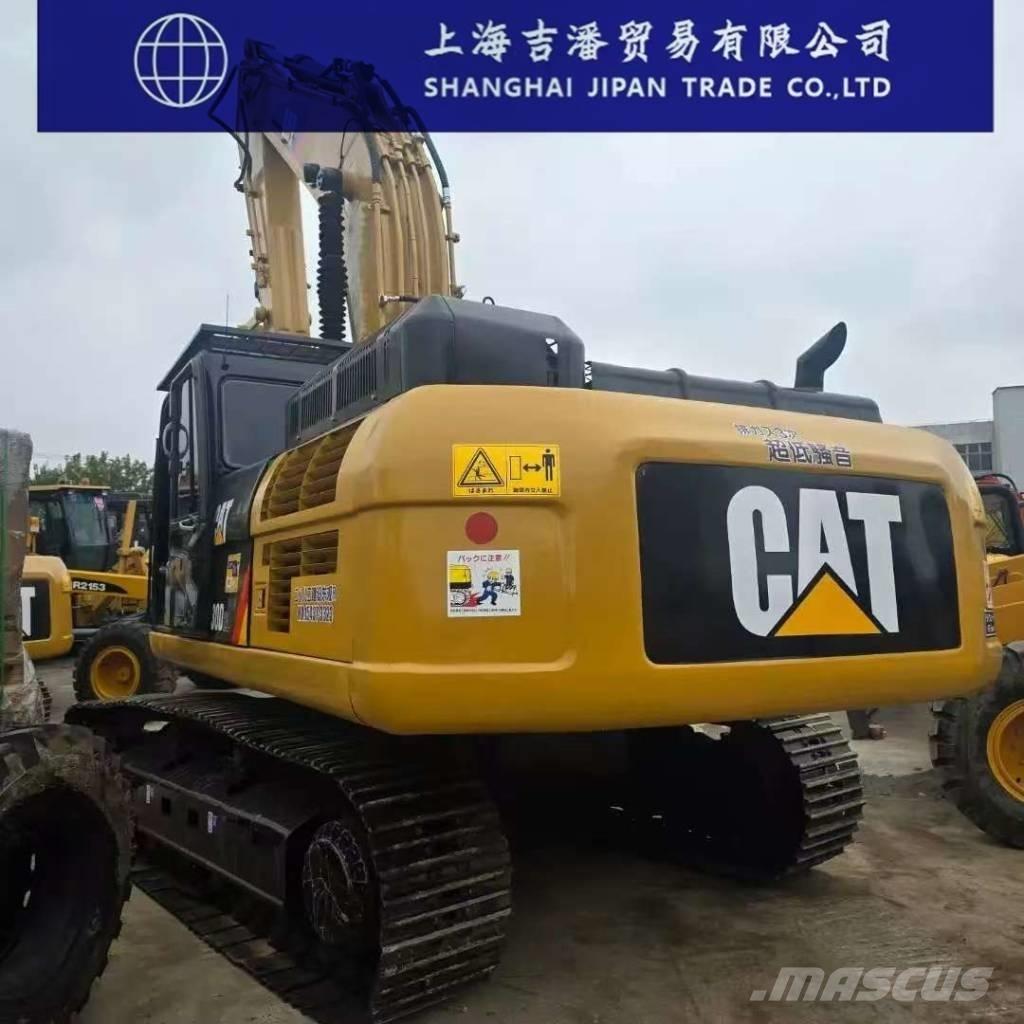

CAT 330 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Caterpillar's new generation CAT®330 hydraulic excavator parameter configuration specification Power fuel Joint ventures/imports Bucket backhoe Tonnage (tons) 30 The working weight of the whole machine (kg) is 30800 Bucket capacity (m³) 1.8 Boom length (mm) 6.15 Stick length (mm) 3.2 performance Rotation speed (rpm) 11.5 Slewing torque (Nm) 110k Bucket digging force (kN) 179 Bucket digging force (kN) 126 dynamical system Engine model Cat® C7.1 Rated power (kw/rpm) 225/2000 Displacement (L) 7.01 Bore × stroke (mm) 105*135 Hydraulic system The maximum flow rate of the main pump (l/min) is 560 Working hydraulic oil circuit (Mpa) 35 Traveling Hydraulic Circuit (Mpa) 35 Slewing hydraulic circuit (Mpa) 29.8 Oil capacity Fuel tank (L) 474 Hydraulic Tank (L) 147 Hydraulic System (L) 310 Engine oil change volume (L) 25 Coolant (L) 25 Body size Total length of transport (mm) 10420 Total Transport Width (mm) 3390 Total height of transport (mm) 3060 Overall track length (mm) 4860 Track shoe width (mm) 600/700/800 Track gauge (mm) 2590 Minimum ground clearance (mm) 490 Counterweight ground clearance (mm) 1120 Track roller center spacing (mm) 3990 Rear end turning radius (mm) 3130 Scope of work Maximum digging radius (mm) 10690 Maximum digging depth (mm) 7250 Maximum digging height (mm) 10000 Maximum unloading height (mm) 6940 Maximum vertical digging depth (mm) 5790
