Hitachi ZX 350

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

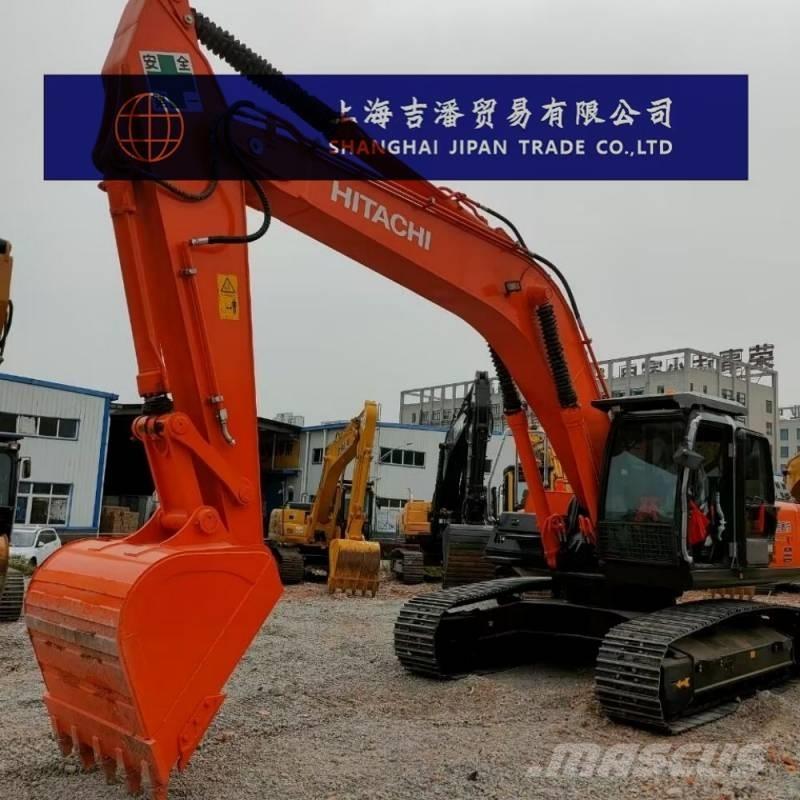

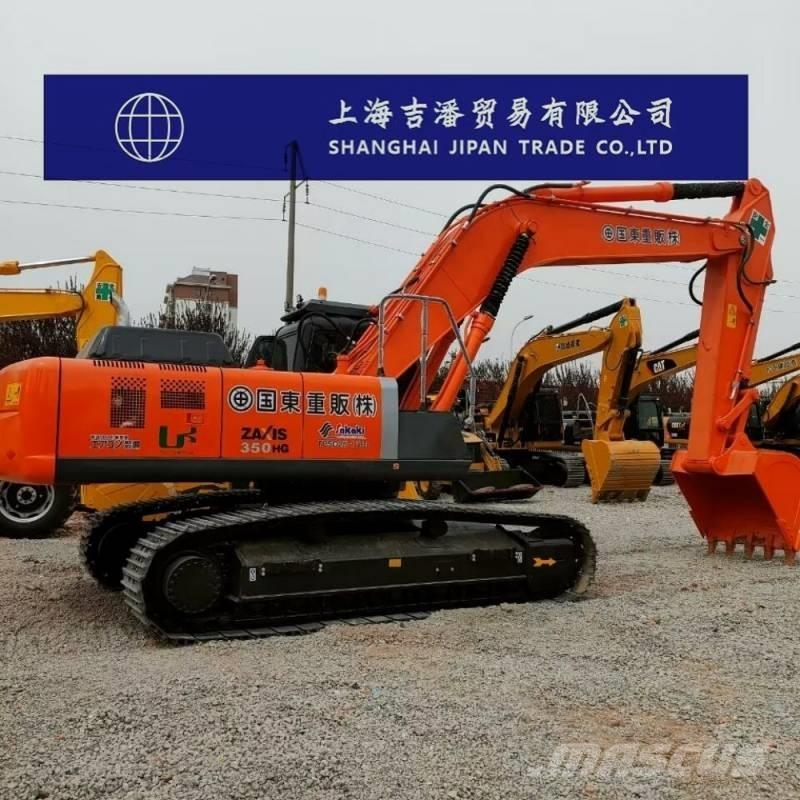

Parameter configuration of Hitachi ZX350H-3G excavator Specification The working weight of the entire machine (kg) is 33,700 Bucket capacity (m³)1.38 Boom length (mm) : 6400 The length of the boom (mm) is 3200 Origin: Japan Tonnage (tons)35 Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 10.7 Walking speed (km/h)3.2/5.0 Climbing ability (%)70/35° Ground specific pressure (Kpa)68 Bucket digging force (kN)234 The digging force of the boom (kN) is 204 Power system Engine model: ISUZU AH-6HK1X Rated power (kw/rpm) : 202/1900 Displacement (L)7.79 Number of cylinders (6 Cylinder diameter × stroke (mm) : 115×125 The cooling method is water cooling The working mode is direct injection, turbocharging, with intercooler Hydraulic system Main pump type variables: Axial piston pump ×2+ gear pump ×1 The maximum flow rate of the main pump (l/min) is 2×288+30.2 The type of walking hydraulic motor is variable axial piston motor ×2 The type of rotary hydraulic motor is axial piston motor ×1 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)32.4 Pilot oil circuit (MPa)3.9 Boom cylinders - Number × cylinder diameter × stroke (mm)146×100 Bucket rod cylinder - number × cylinder diameter × stroke (mm)170×115 Bucket cylinder - number × cylinder diameter × stroke (mm)140×95 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)630 Hydraulic oil tank (L)180 Engine oil change volume (L)41 Coolant (L)32 Main body size The total transportation length (mm) is 11,000 The total transportation width (mm) is 3190 The total transportation height (mm) is 3270 The total height of the cab (mm) is 3160 The ground clearance of the counterweight (mm) is 1160 Track grounding length (mm) : 3730 The total length of the tracks (mm) is 4650 Track plate width (mm) : 600 The total width of the tracks (mm) is 3190 Track gauge (mm) : 2590 Minimum ground clearance (mm) : 500 Rear end turning radius (mm)3390 Scope of work Maximum excavation radius (mm) : 11,100 The maximum excavation radius (mm) of the shutdown face is 10,890 Maximum excavation depth (mm) : 7380 Maximum excavation height (mm) : 10360 Maximum unloading height (mm) : 7240 Maximum effective excavation depth (mm) : 7210 Width × height (mm) of the bulldozer board without a bulldozer shovel Lifting or deepening with a bulldozer (mm) without a bulldozer
