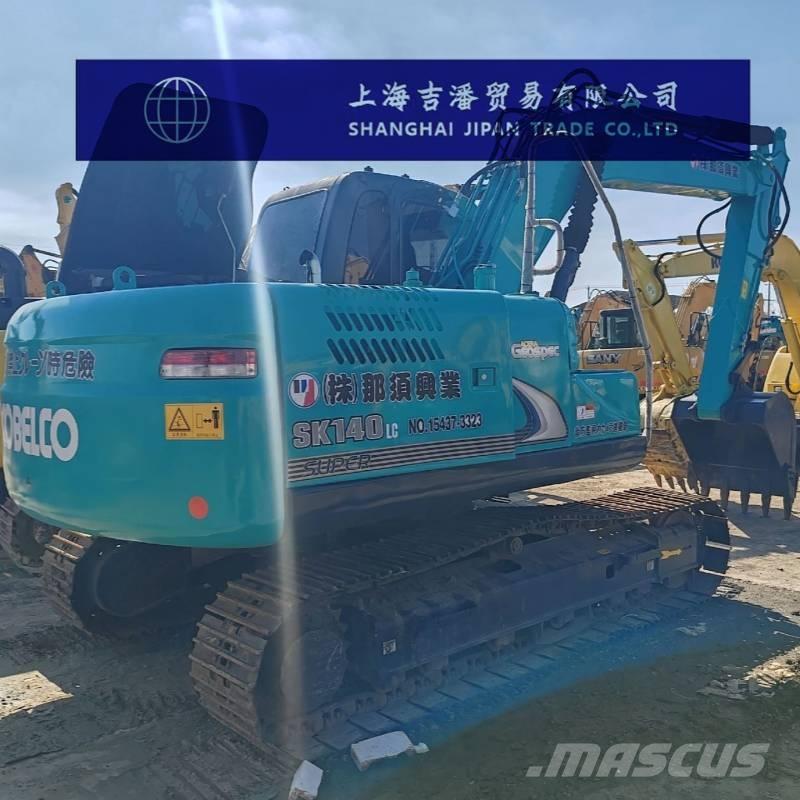

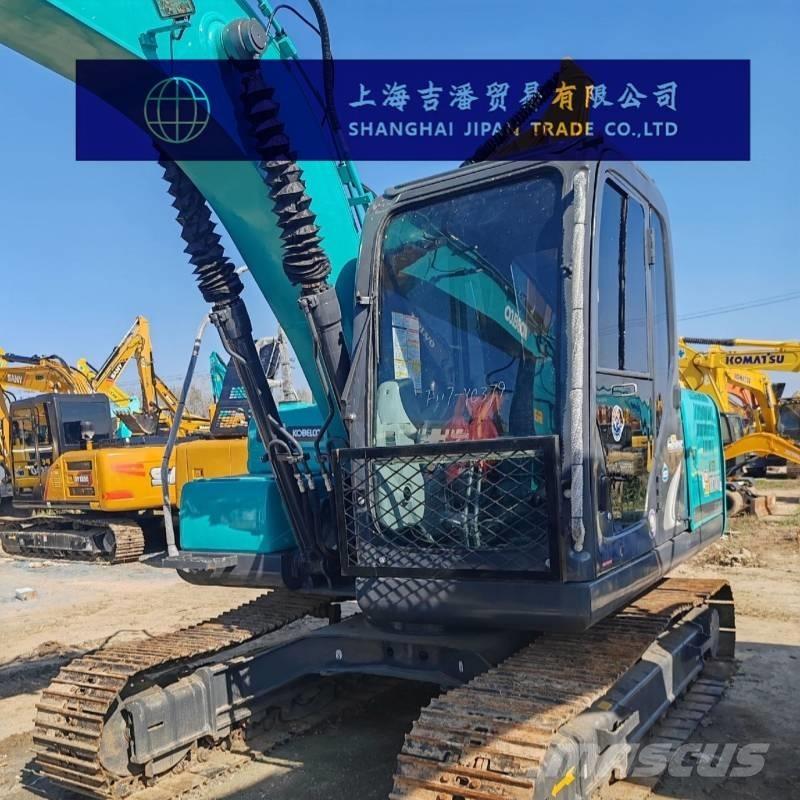

Kobelco SK 140

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel. If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter Configuration of Kobelco SK140LC Excavator Specification Tonnage (tons)14 The working weight of the entire machine (kg) is 13,200 Bucket capacity (m³):0.57 Boom length (mm):4680 Performance Rotational speed (rpm)11 Rotary torque (Nm)39.9 Walking speed (km/h):3.4/5.6 Climbing ability:70% Ground specific pressure (Kpa):45 Bucket digging force (kN):90.1 The digging force of the bucket arm (kN) is 64.4 Maximum traction force (kN)139 Power system Engine model: Mitsubishi D04FR-KDP2TAAC Rated power (kw/rpm):74/2000 Maximum torque (N.m)375/1600 Displacement (L)4.249 Number of cylinders:4 Cylinder diameter × stroke (mm)102*130 The working mode is direct injection, water cooling, four-stroke, turbocharging, and built-in intercooling Hydraulic system The main pump type is a double variable axial piston pump + pilot gear pump The type of rotary hydraulic motor is axial piston type The walking hydraulic motor type is two sets of two-speed variable displacement plunger type The maximum flow rate of the main pump (l/min) is 2*130 Pilot pump flow rate (L/min):1*20 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)28 Control hydraulic circuit (Mpa)5 Boom cylinders - Number × cylinder diameter × stroke (mm)2*100*1092 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1*115*1120 Bucket cylinder - Number × cylinder diameter × stroke (mm)1*95*903 Oil capacity Fuel tank (L)275 Hydraulic oil tank (L)101 Hydraulic System (L)171 Engine oil change volume (L):18.5 Coolant (L)14 Main body size The total length of transportation (mm) is 7790 The total transportation width (mm) is 2490 The total transportation height (mm) is 2870 The total height of the cab (mm) is 2870 The total length of the track (mm) is 3750 Track plate width (mm):500 The total width of the tracks (mm) is 2490 Track gauge (mm)1990 Minimum ground clearance (mm):440 The ground clearance of the counterweight (mm) is 910 The minimum turning radius (mm) of the front working device is 2620 The rear end turning radius (mm) is 2190 Number of track plates (single side) (pieces)46 Scope of work Maximum excavation radius (mm):8,340 The maximum excavation radius (mm) of the shutdown face is 8190 Maximum excavation depth (mm):5520 Maximum excavation height (mm):8500 Maximum unloading height (mm):6090 The maximum vertical excavation depth (mm) is 4880 Maximum effective excavation depth (mm):5290
