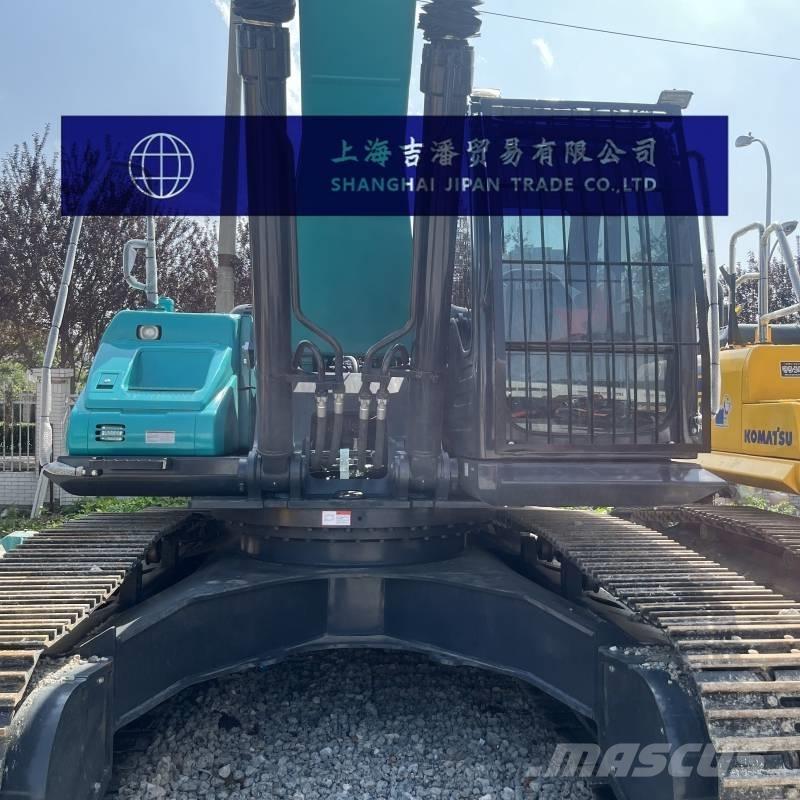

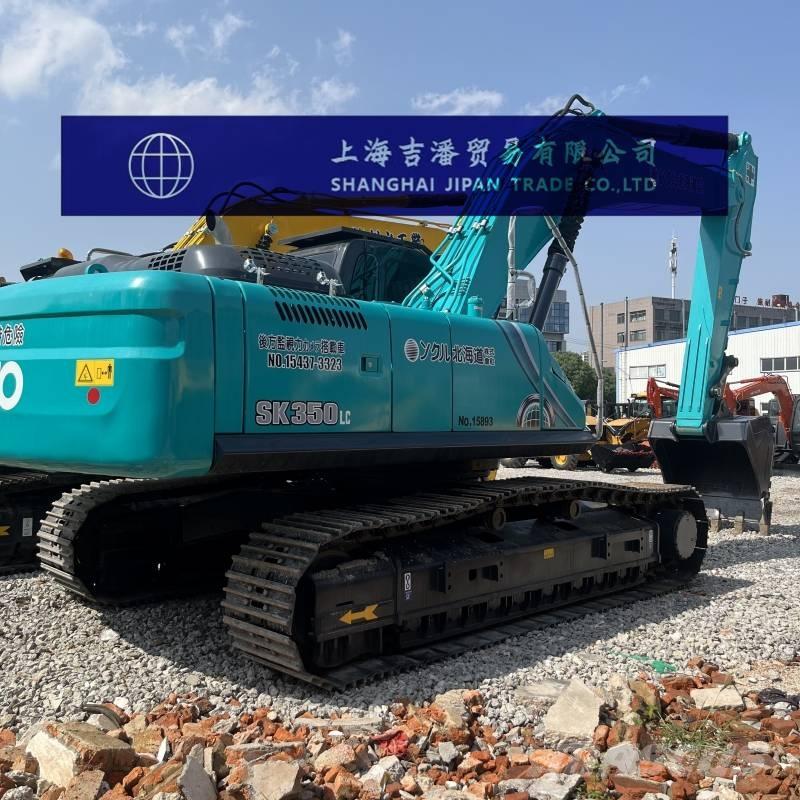

Kobelco SK 350
Cena bez DPH
Tisk
INFO
Kategorie
Pásová rýpadla
Značka/model
Kobelco SK 350
Rok výroby
2023
Najeté motohodiny
570 h
Stát
Čína
Obecný stupeň
1
2
3
4
5
Mascus ID
360CF462
INFORMACE O CENĚ
Výběr měny
PODROBNOSTI
Skladové č.
1
Typ pohonu
Naftový
Výrobní číslo
1
Počet předchozích majitelů
1
Poslední kontrola
2025-10-21
Stav podvozku
Good Condition
Motor
Original
Brutto hmotnost
34700 kg
Výkon motoru
197 kW (268 hp)
Výrobce motoru
HINO
Registrační číslo
1
Třída emisí
Stupeň V
Kapacita lopaty
1.60 m3
Rozchod kol
600 mm
Průtok pomocné hydrauliky
294 l/min
Maximální rychlost
5.60 km/h
Dopravní rozměry (DxŠxV)
11200 x 3400 x 3420  mm
Původní barva
Original
Dipper / stick length
3300 mm
Info o stavu/Garance
Good
Vyrobeno ve státě
Japonsko
Dodací podmínky
FCA, FOB, CIF, EXW
Certifikace
EPA, CE
Přídavná zařízení
We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate.
We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality.
Contact: Jason
WhatsApp/Mobile:0086 13675656717
WeChat:+86 13675656717
Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.
Příslušenství
pojistný ventil - výložník
pojistný ventil - rameno
Klimatizace
Předfiltr motoru

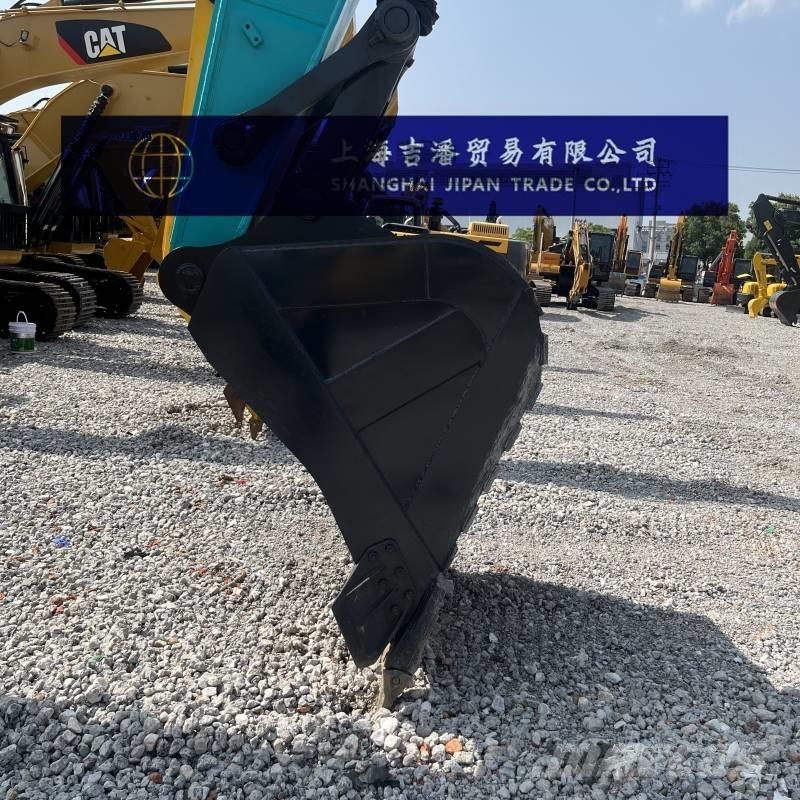

Skeletonová lžíce
maják
speciální vybavení
naftové topení
ovládací joystick
Steel tracks
standardní podkopová lopata
Cable bucket
svahovací lžíce
v lžíce
ochrana kabiny
Depth control
Další informace
Overall machine specification
The overall working weight of the machine is 34,700 kg
Bucket capacity:1.6 cubic meters
Boom length: 3300mm
Performance parameters
Rotational speed:10rpm
Walking speed:5.6/3.3Km/h
Climbing ability:70% or 35 degrees
Grounding specific pressure:50.5Kpa
Bucket digging force:322kN
Bucket shaft digging force:165kN
Power system
Engine model:Hino JO8E
Rated power:196.9/2100 kW /rpm
Displacement:7.7L
Number of cylinders:6
Cylinder diameter × stroke:112*130mm
Note: Direct injection, turbocharging, built-in intercooling
Hydraulic system
Main pump types: Double variable displacement axial piston pump, pilot gear pump
The maximum flow rate of the main pump is 2*294L/min
The type of walking hydraulic motor:two sets of two-speed variable displacement plunger motors
Working hydraulic circuit:34.3Mpa
Walking hydraulic circuit:34.3Mpa
Rotary hydraulic circuit:29Mpa
Control hydraulic circuit:5Mpa
Boom cylinders: Number × cylinder diameter × stroke:2140-1550mm
Bucket rod cylinder: number × cylinder diameter × stroke is 170*1788mm
Bucket cylinder: Number × cylinder diameter × stroke is 150*1193mm
Oil capacity
Fuel tank:580L
Hydraulic oil tank:280L
Hydraulic system:353L
Engine oil change volume:28.5L
Coolant:31.1L
Main body size
Total transportation length:11200mm
Total transportation width:3400mm
Total transportation height:3420mm
The total height of the cab is 3160mm
Counterweight ground clearance:1190mm
Track grounding length:4050mm
Total track length:4980mm
Track plate width:600/800mm
Total width of the track:3200mm
Track gauge:2600mm
Minimum ground clearance:500mm
Minimum turning radius of the front working device:4370mm
Rear end turning radius:3500mm
Scope of work
Maximum excavation radius:11,260 mm
Maximum excavation radius of the shutdown face:11060mm
Maximum excavation depth:7,560mm
Maximum excavation height:10,580mm
Maximum unloading height:7370mm
Maximum vertical excavation depth:6610mm
Maximum excavation depth:7400mm
