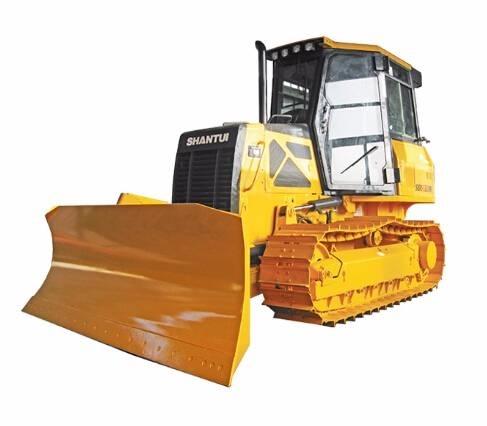

Shantui SD08-3

Name: Shantui SD08-3
Brand: Shantui
SKU: CAB92FBC

Cena bez DPH

Nabídněte cenu

Oblíbená

Podíl

Uložit vyhledávání

Tisk

INFO

Kategorie

Pásové dozery

Značka/model

Shantui SD08-3

Rok výroby

2018

Zvláštní možnosti

Nové/nepoužité

Umístění stroje

Jining, Shandong, China

Stát

Čína

Obecný stupeň

Mascus ID

CAB92FBC

PODROBNOSTI

Skladové č.

SD08-3

Poslední kontrola

yes

Servisní knížka

Ano

Provozní šířka

270 cm

Výrobní číslo

SD08-3

Brutto hmotnost

8020 kg

Typ ostří

Straight blade

Podvozek

Pásy

Třída emisí

Stupeň II

Typ kabiny

Zavřená kabina

Motor

Weichai WP4G90E235

Výkon motoru

58.0 kW (78.8 hp)

Rozchod kol

400 mm

Převodovka

Shantui

Dopravní rozměry (DxŠxV)

4300 x 2700 x 2800 mm

Původní barva

yello

Značka pneumatik

Shantui

Info o stavu/Garance

ISO9001

Stav předních pneumatik

100

Vyrobeno ve státě

Čína

Equipped for

propertynames.pp_equippedfor_2100012

Dodací podmínky

FOB, CFR, CIF, EXW

Certifikace

EPA, CE, ANSI

Příslušenství

Naviják

Klimatizace

Doplňková hydraulika

Single shank ripper

Zobrazit další

Další informace

Technical Features ● The air-air inter-cooled, electronically controlled, and turbocharged diesel engine features outstanding power performance, economy, and durability, with the emission conforming to EPA Tier 3/StageIIIA standard. ● The built-in radiator features high heat exchange efficiency, in which the thin core thickness improves the ventilation efficiency of fan, reduces the wind resistance, and guarantees the normal running of machine under high temperature environment. ● The dual-circuit electronically controlled static pressure drive system automatically adjusts the power output and traveling speed to adapt to the load variation. The tracks on two sides are driven independently to ensure full power output during steering and realize reverse rotation of tracks on two sides. It features completely “continuously variable” speed change to provide best speed for different working conditions. ● The modular wheel reducer system features high strength, long service life, and easy maintenances. ● The compact body remarkably enhances the flexibility and features advantages for operations in narrow areas. ● High strength chassis structure meets the demands of heavy-load working condition and features high rigidity and durability. ● The palm commanded electronic control system features accurate, flexible, simple, and comfortable operations, with the left joystick controlling the traveling direction and speed of the machine and the right joystick controlling various motions of the working device. ● The intelligent service system incorporates automatic malfunction detection and automatic diagnosis functions and provides remote technical support. ● The integrated intelligent thermal management system realizes the best temperature control and the noise reduction and energy-saving. ● The ROPS/FOPS shock-absorbing cab, the air suspension seat, and the high capacity heating and air conditioning system provide a safe, comfortable, and spacious operating environment. ● The high capacity, multi-functional, and power angle blade with adjustable penetrating angle is suitable for fine operations, including leveling, backfilling, stacking, paving, and site clearing, featuring high rigidity and durability and high productivity. ● The optional imported hydraulic winch can be used for rescue and lumbering operations. It features outstanding rope traction force at any speed and stepless drum speed change. The high strength traction frame features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions. Performance Parameters Length × width × height (mm) (excluding ripper) 4252×2680×2775(Including traction frame) 4252×3150×2775(Including traction frame) Operating weight(t) (excluding ripper) 8.02 8.44 Engine model QSB3.3 Net power/rated speed (kW/rpm) 59/2200 Ground pressure(Mpa) 0.04 0.03 Blade type U-blade Blade capacity(m3) 1.93 2.04 Applicable Working Conditions Modeling of golf courses and earthworks.Zobrazit další
