Shantui SD10YE

Cena bez DPH

Nabídněte cenu

Compnay LOGO
Images1

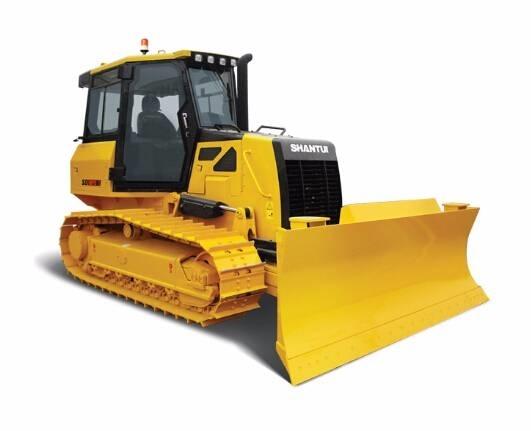

Shantui SD10YE Pásové dozery
FavoriteOblíbená
sharePodíl
Save searchUložit vyhledávání
Tisk

INFO

Kategorie
Pásové dozery
Značka/model
Shantui SD10YE
Rok výroby
2018
Stav
Nové/nepoužité
Umístění stroje
Jining, Shandong, China
Stát
Čína
Obecný stupeň
1
2
3
4
5
Mascus ID
C5F78DED

PODROBNOSTI

Skladové č.
SD10YE
Poslední kontrola
yes
Servisní knížka
Ano
Provozní šířka
290 cm
Výrobní číslo
SD10YE
Brutto hmotnost
9200 kg
Typ ostří
Straight blade
Podvozek
Pásy
Typ kabiny
Zavřená kabina
Třída emisí
Stupeň IIIB
Motor
Cummins QSB4.5
Výkon motoru
74 kW (101 hp)
Rozchod kol
460 mm
Převodovka
Shantui
Dopravní rozměry (DxŠxV)
4400 x 2900 x 2800 mm
Původní barva
yellow
Značka pneumatik
Shantui
Info o stavu/Garance
ISO9001
Stav předních pneumatik
100
Vyrobeno ve státě
Čína
Equipped for
propertynames.pp_equippedfor_2100012
Dodací podmínky
FOB, CFR, CIF, EXW
Certifikace
EPA, CE, ANSI
Příslušenství
Naviják
Klimatizace
Doplňková hydraulika
Single shank ripper
Zobrazit další
Další informace
Technical Features ●The air-air inter-cooled, electronically controlled, and turbocharged diesel engine features outstanding power performance, economy, and durability, with the emission conforming to EPA Tier 3/StageIIIA standard. ●The dual-circuit electronically controlled static pressure drive system automatically adjusts the power output and traveling speed to adapt to the load variation. The tracks on two sides are driven independently to ensure full power output during steering and realize reverse rotation of tracks on two sides. It features completely “continuously variable” speed change to provide best speed for different working conditions. ●The palm commanded electronic control system features accurate, flexible, simple, and comfortable operations, with the left joystick controlling the traveling direction and speed of the machine and the right joystick controlling various motions of the working device. ●High strength chassis structure meets the demands of heavy-load working condition and features high rigidity and durability. ●The integrated intelligent thermal management system realizes the best temperature control and the noise reduction and energy-saving. ●The intelligent service system incorporates automatic malfunction detection and automatic diagnosis functions and provides remote technical support. ●The ROPS/FOPS shock-absorbing cab, the air suspension seat, and the high capacity heating and air conditioning system provide a safe, comfortable, and spacious operating environment , with broad visual field. ●The modular wheel reducer system features high strength, long service life, and easy maintenances. ●The high capacity, high strength, multi-functional, and adjustable power angle blade is suitable for fine or heavy-load operations, including excavating, backfilling,modeling, and leveling, featuring high rigidity and durability and high production efficiency. Performance Parameters Length × width × height (mm) (excluding ripper) 4478×2860×2825 4478×3200×2825 Operating weight(t)(excluding ripper) 9.2 9.5 Engine model QSB4.5 Net power/rated speed (kW/rpm) 80/2200 Ground pressure(Mpa) 0.04 0.03 Blade type U-blade Blade capacity(m3) 2.38 2.66 Applicable Working Conditions Fine and heavy-load operations (such as digging, backfill, modeling, and leveling) of earthwork materials as well as rescue and lumbering functions.Zobrazit další

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Čína
10
Roky na Mascusu
Získejte e-mailové upozornění
Ukázat všechny nabídky prodejce Jining Haoduo Import and export co., Ltd.
