Shantui SD13

Cena bez DPH

Nabídněte cenu

Compnay LOGO
Images1

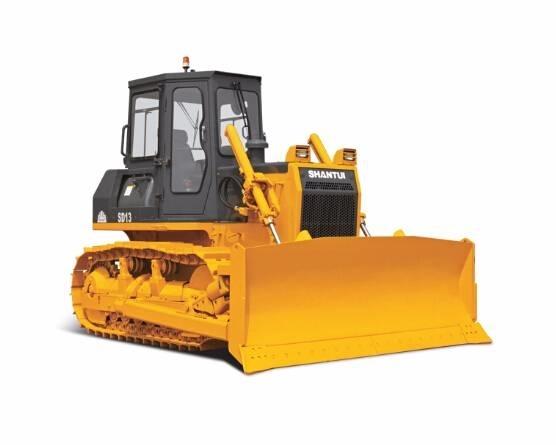

Shantui SD13 Pásové dozery
FavoriteOblíbená
sharePodíl
Save searchUložit vyhledávání
Tisk

INFO

Kategorie
Pásové dozery
Značka/model
Shantui SD13
Rok výroby
2018
Stav
Nové/nepoužité
Umístění stroje
Jining, Shandong, China
Stát
Čína
Obecný stupeň
1
2
3
4
5
Mascus ID
9207F1C3

PODROBNOSTI

Skladové č.
SD13
Poslední kontrola
yes
Servisní knížka
Ano
Provozní šířka
320 cm
Výrobní číslo
SD13
Brutto hmotnost
13700 kg
Typ ostří
Straight blade
Podvozek
Pásy
Typ kabiny
Zavřená kabina
Třída emisí
Stupeň II
Motor
Shangchai SC8D143G2B1
Výkon motoru
94.2 kW (128 hp)
Rozchod kol
460 mm
Převodovka
Shantui
Dopravní rozměry (DxŠxV)
4500 x 3200 x 3000 mm
Původní barva
yellow
Značka pneumatik
Shantui
Info o stavu/Garance
ISO9001
Stav předních pneumatik
100
Vyrobeno ve státě
Čína
Equipped for
propertynames.pp_equippedfor_2100012
Dodací podmínky
FOB, CFR, CIF, EXW
Certifikace
EPA, CE, ANSI
Příslušenství
Naviják
Klimatizace
Doplňková hydraulika
Single shank ripper
Zobrazit další
Další informace
Technical Features ● The turbocharged engine features strong power, high efficiency and energy-saving, and high torque reserve efficiency. ● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating effic ● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances. ● The valves and pumps are reasonably arranged to ease the repairs and maintenances. The multi-stage filtration system is adopted to effectively guarantee the oil cleanliness and reduce the malfunction rate of hydraulic system. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● The electric system features stable and reliable working. All instruments are controlled by microcomputer, featuring vivid and distinct display and accurate and convenient readings. ● The rigid traveling system effectively improves the stability of machine under complicated working conditions. ● The comfortable and convenient operating console, light controls, and adjustable seat and armrests provide the operation personnel with comfortable operating experiences. ● The working device features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions. ● The standard straight tilting blade features strong cutting force to handle all kinds of severe working faces and the outstanding durability of blade is guaranteed by the application of high strength structure and high performance materials. Performance Parameters Length × width × height (mm) (excluding ripper) 4492×3185×2950 Operating weight(t) (excluding ripper) 13.7 Engine model SC8D143G2B1 Net power/rated speed (kW/rpm) 95.5/1900 Ground pressure(Mpa) 0.063 Blade type Straight tilting blade Blade capacity(m3) 3.158 for straight tilting blade 2.33 for angle blade Applicable Working Conditions Earthworks.Zobrazit další
