Shantui SD23

Cena bez DPH

Nabídněte cenu

Compnay LOGO
Images3

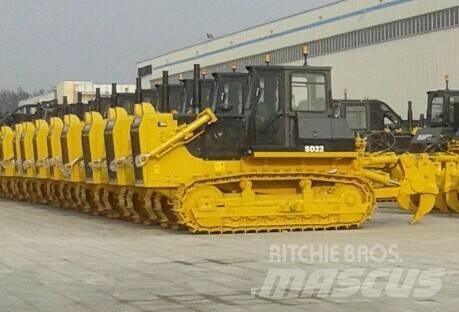

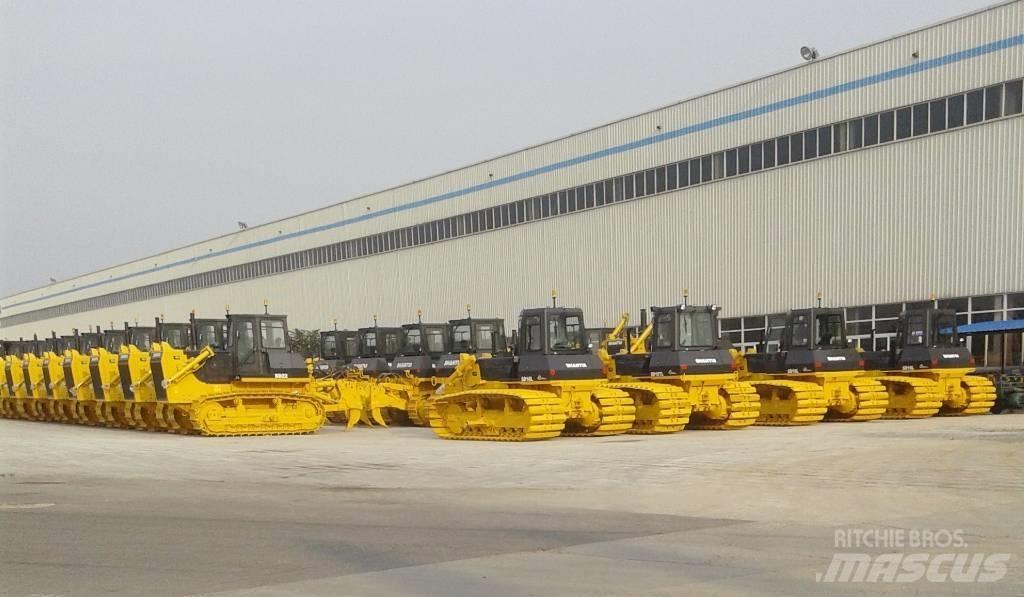

Shantui SD23 Pásové dozery
Shantui SD23 Pásové dozery
Shantui SD23 Pásové dozery
FavoriteOblíbená
sharePodíl
Save searchUložit vyhledávání
Tisk

INFO

Kategorie
Pásové dozery
Značka/model
Shantui SD23
Rok výroby
2018
Zvláštní možnosti
Nové/nepoužité
Umístění stroje
jining, Shandong, China
Stát
Čína
Obecný stupeň
1
2
3
4
5
Mascus ID
AE5844F7

PODROBNOSTI

Skladové č.
SD23
Poslední kontrola
yes
Servisní knížka
Ano
Provozní šířka
373 cm
Výrobní číslo
SD23
Brutto hmotnost
24600 kg
Typ ostří
Straight blade
Podvozek
Pásy
Třída emisí
Stupeň II
Typ kabiny
Zavřená kabina
Motor
Cummins NT855-C280S10
Výkon motoru
175 kW (238 hp)
Rozchod kol
660 mm
Převodovka
shantui
Dopravní rozměry (DxŠxV)
5870 x 3730 x 3360 mm
Původní barva
yellow
Značka pneumatik
Shantui
Info o stavu/Garance
ISO9001
Stav předních pneumatik
100
Vyrobeno ve státě
Čína
Equipped for
propertynames.pp_equippedfor_2100010
Dodací podmínky
FCA, CPT, FOB, CFR, CIF, EXW
Certifikace
EPA, CE, ANSI
Přídavná zařízení
Single ripper/Three-shank ripper
Příslušenství
Naviják
Klimatizace
Doplňková hydraulika
Single shank ripper
Zobrazit další
Další informace
Technical Features ●The high power Cummins NT855-C280S10 with high-efficiency turbocharger is equipped to expand the high-efficiency working zone of engine and achieve lower fuel consumption. ●The mature and stable hydraulic torque converter, the high reliability power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability. ●The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating. ●The full box-type main frame features high carrying capacity against impact load and bending moment, in which the application of high performance materials and high strength castings makes the main frame stronger and the high quality welds guarantee the life cycle of the main frame. ●The advanced fuel-saving hydraulic circuit features low energy consumption and convenient maintenances, with the working pressure up to 19.1MPa. ●The integrally injection molded instrument panel features beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market. ●The chassis system features powerful traction and durability and high adaptability and stability under various complicated working conditions. ●In accordance with ergonomic principles, the gearshift, steering, and accelerator controls are arranged on the left side of the driver, with the adoption of flexible shaft mechanism. The working device controls are centrally arranged on the right side of the driver with adoption of servo control system, featuring light and flexible controls. ●The standard straight tilting blade features powerful cutting force and durability, with optional U-blade at the user’s choice. The single-shank ripper features adjustable penetrating angle and powerful penetrating force, with optional three-shank ripper and traction frame at the user’s choice. Performance Parameters Length × width × height (mm) (excluding ripper) 5528×3725×3741 Operating weight (t)(excluding ripper) 24.6 Engine model NT855-C280S10 Net power/rated speed (kW/rpm) 180/2000 Ground pressure (Mpa) 0.078 Blade type Straight tilting blade U blade Blade capacity(m3) 7.8 for straight tilting blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Zobrazit další
