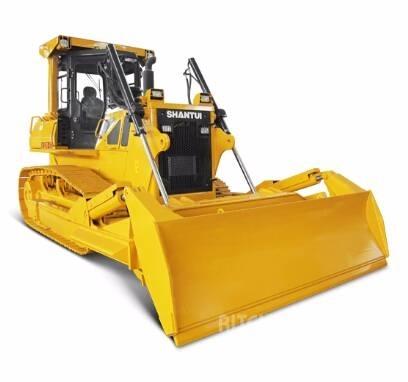

Shantui STR20-5

Cena bez DPH

Nabídněte cenu

FavoriteOblíbená
sharePodíl
Save searchUložit vyhledávání
Tisk

INFO

Kategorie
Pásové dozery
Značka/model
Shantui STR20-5
Rok výroby
2018
Zvláštní možnosti
Nové/nepoužité
Umístění stroje
Jining, Shandong, China
Stát
Čína
Obecný stupeň
1
2
3
4
5
Mascus ID
B6E0DAFF

PODROBNOSTI

Skladové č.
STR20-5
Poslední kontrola
yes
Servisní knížka
Ano
Provozní šířka
340 cm
Výrobní číslo
STR20-5
Brutto hmotnost
21000 kg
Podvozek
Pásy
Třída emisí
Stupeň II
Typ kabiny
Zavřená kabina
Motor
Weichai WD12
Výkon motoru
149 kW (203 hp)
Rozchod kol
560 mm
Převodovka
Shantui
Dopravní rozměry (DxŠxV)
6500 x 3400 x 3070 mm
Původní barva
yellow
Značka pneumatik
Shantui
Info o stavu/Garance
ISO9001
Stav předních pneumatik
100
Vyrobeno ve státě
Čína
Equipped for
propertynames.pp_equippedfor_2100011
Dodací podmínky
FOB, CFR, CIF, EXW
Certifikace
EPA, CE, ANSI
Příslušenství
Naviják
Klimatizace
Doplňková hydraulika
Multi shank ripper
Zobrazit další
Další informace
Technical Features ● It’s equipped with Weichai WD12 engine and three-stage air filter and is additional fitted with anti-scalding device, featuring higher efficiency and better energy-saving. ● The imported bearings for the transmission and main drive and the friction plates of higher skid and wear resistance and better anti-pollution capacity are adopted to achieve more excellent operating performances of the trimming bulldozer. ● The cooling system adopts enlarged water tank and straight-through type core. The three-point (up and down) shock-absorbing installation for the radiator features higher stability. ● The lifting cylinder of the hydraulic system adopts the bushing cap structure, featuring convenient maintenances. ● The electric circuit design of the whole machine adopts the water-proof circuits and water-proof fuse case. It’s additionally fitted with oil temperature, oil pressure, and water temperature alarms and reversing alarm. ● The floating oil seals within the guide wheel, carrier roller, and track roller can prevent the ingress of dusts and the leakage of lubricating oil to guarantee the high durability. ● The working device is controlled directly by the valve stems, featuring high reliability, lightness, and rapidness, and the locking mechanism features easy and reliable operations. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● New cab features good sealing performance and low noise and the instruments are reasonably arranged to realize convenient and rapid operations. Performance Parameters Overall dimensions(mm) 6468×3352×3063 Operating weight (kg) 21000 Engine model WD12 Net power/rated speed (kW/rpm) 149/1950 Track plate width (mm) 510 Ground pressure(Mpa) 0.063 Blade width/height (mm) 3175/950Zobrazit další

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Čína
