Kategorie
Rotátory
Značka/model
Vahva FORTI 200
Rok výroby
2015
Zvláštní možnosti
Extra demo
Umístění stroje
Saue
Stát
Estonsko
Obecný stupeň
1
2
3
4
5
Mascus ID
24BE0111

INFORMACE O CENĚ

Výběr měny

PODROBNOSTI

Skladové č.
VR50000
Servisní knížka
Ano
Vhodné pro následující stroje
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

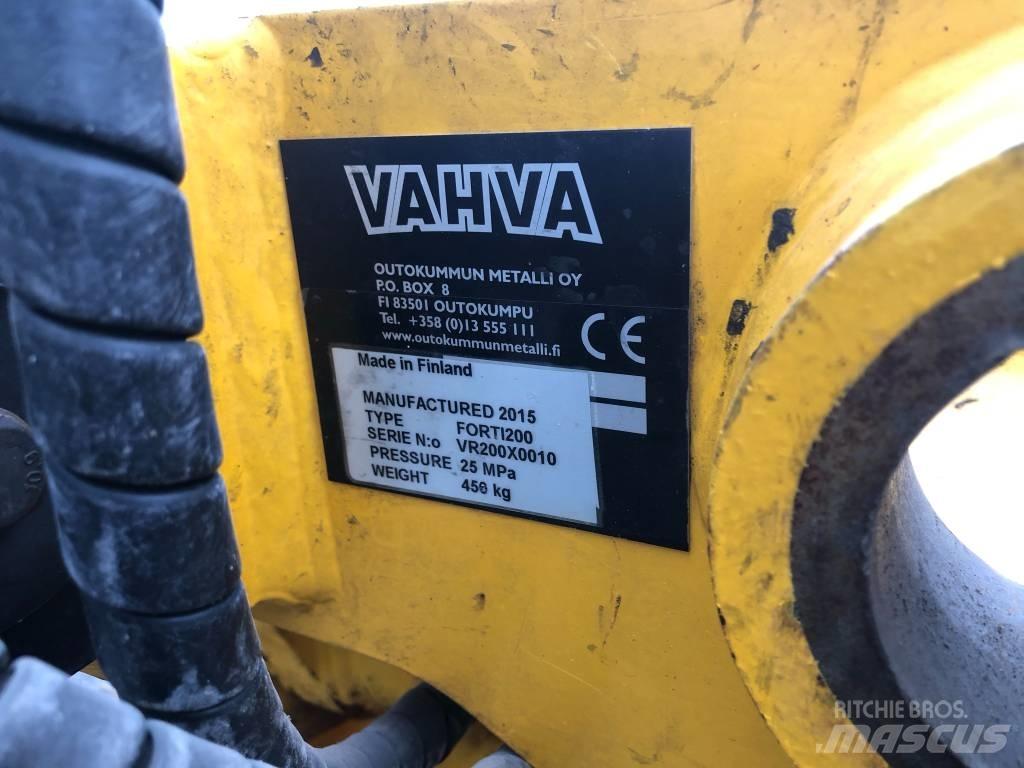

Výrobní číslo
VR200X0010
Pracovní tlak
250 bar
Požadovaný hydraulický tok
80 l/min
Celková hmotnost
450 kg
Dopravní rozměry (DxŠxV)
990 x 720 x 280 mm
Vyrobeno ve státě
Finsko
Dodací podmínky
EXW
Certifikace
CE
Další informace

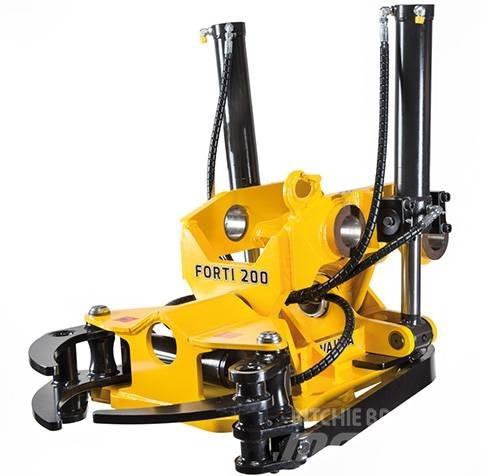

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Zobrazit další

Sautec AS

Tule 10 76505 Saue Harjumaa Estonsko
