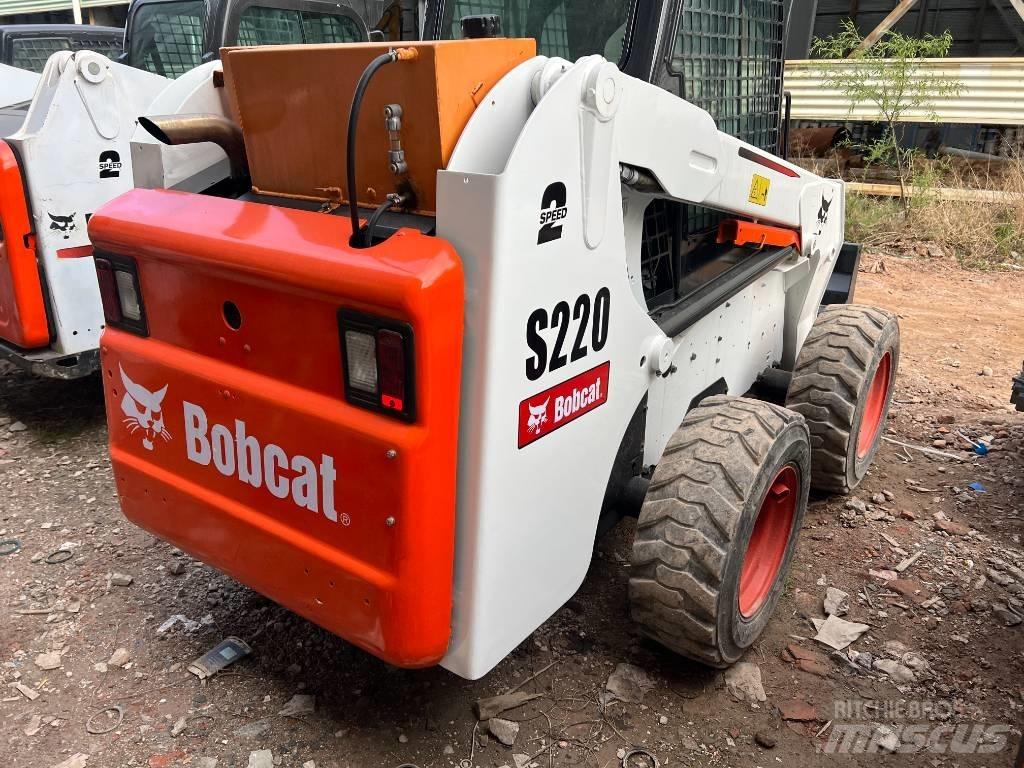

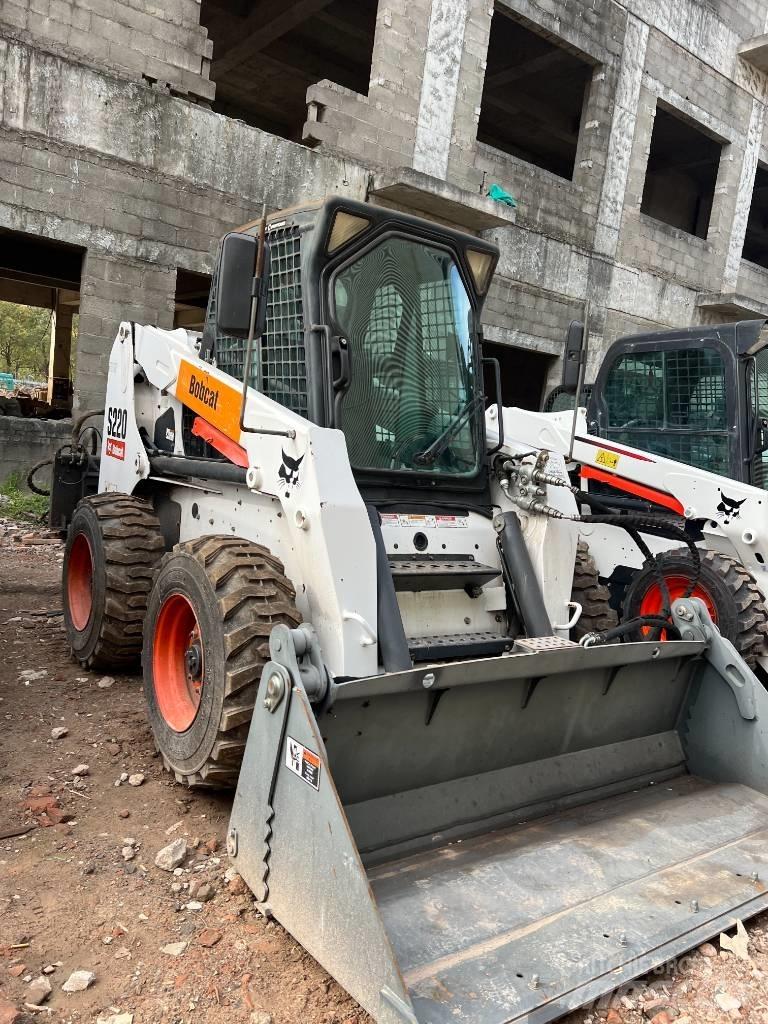

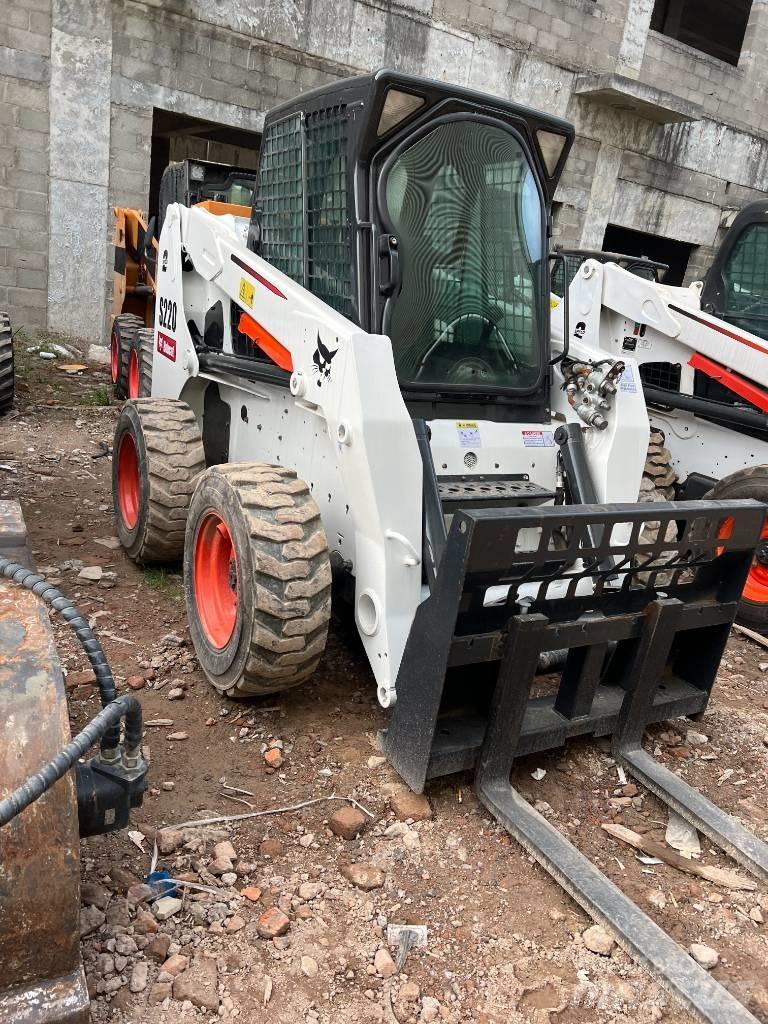

Bobcat S220

BOBCAT S220 SKID-STEER LOADER Rated Operating Capacity (ROC): 2,200 lbs (998 kg) Operating Weight: 3,073 kg Engine: Kubota V2203-M-DI Power: 74 hp (55 kW) Torque: 195 lb-ft (264 Nm) Fuel Tank Capacity: 22.5 gal (85 L) Performance Data Lift Height: 122 in (3,100 mm) – Vertical Lift Dump Height: 93 in (2,362 mm) Breakout Force: Bucket: 4,050 lbs (1,837 kg) Lift Arm: 3,500 lbs (1,588 kg) Travel Speed: 10 mph (16 km/h) Hydraulic System Flow Rate: 18.5 gpm (70 L/min) System Pressure: 3,100 psi (214 bar) Auxiliary Hydraulics: Standard high-flow (optional) Dimensions Length: 122 in (3,100 mm) Width: 72 in (1,829 mm) Height: 84 in (2,134 mm) (with cab) Ground Clearance: 8.2 in (208 mm)
