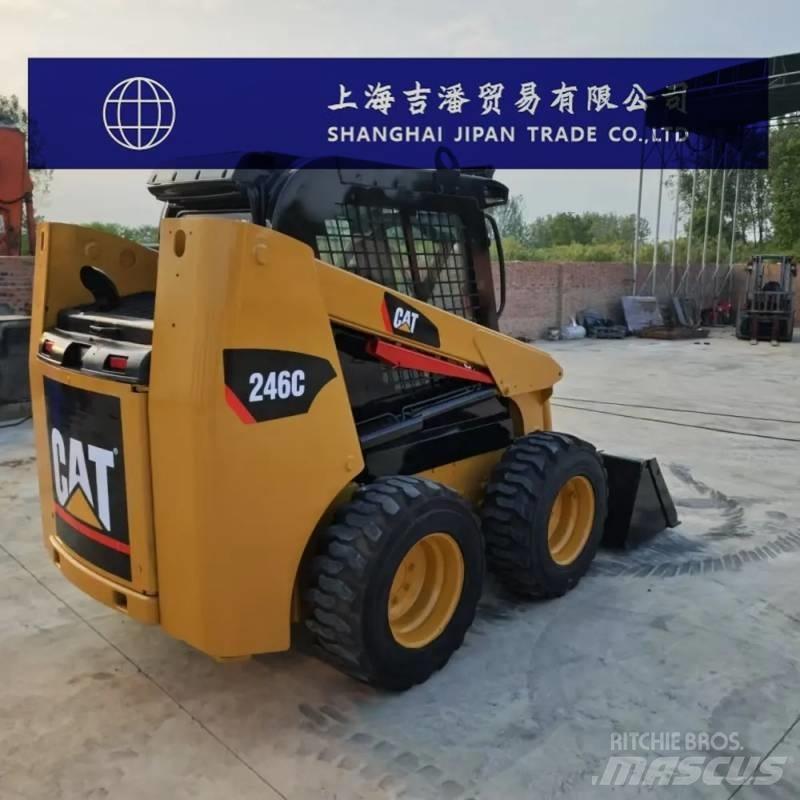

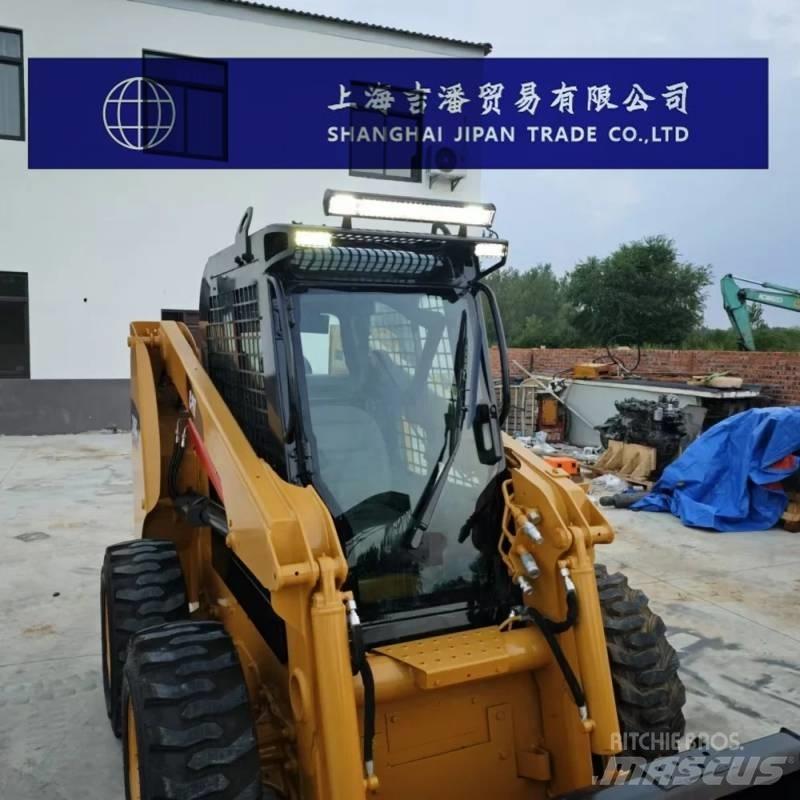

CAT 246 C
Cena bez DPH
Tisk
INFO
Kategorie
Smykem řízené nakladače
Značka/model
CAT 246 C
Rok výroby
2023
Najeté motohodiny
700 h
Stát
Čína
Obecný stupeň
1
2
3
4
5
Mascus ID
381CB2F1
INFORMACE O CENĚ
Výběr měny
PODROBNOSTI
Skladové č.
1
Typ pohonu
Naftový
Výrobní číslo
1
Poslední kontrola
2025-07-15
Stav podvozku
Good Condition
Počet předchozích majitelů
1
Brutto hmotnost
3348 kg
Nosnost
1950 kg
Registrační číslo
1
Typ vozu
Pevný rám
Typ kabiny
Zavřená kabina
Třída emisí
Stupeň V
Motor
Original
Kapacita lopaty
0.80 m3
Výkon motoru
56 kW (76.1 hp)
Výrobce motoru
Original
Maximální rychlost
19.3 km/h
Průtok pomocné hydrauliky
84 l/min
Dopravní rozměry (DxŠxV)
3692 x 1676 x 2083 mm
Původní barva
Original
Typ nosiče
Kolový
Info o stavu/Garance
1 Year
Značka pneumatik
Michelin
Stav předních pneumatik
98
Stav zadních pneumatik
2
Velikost zadní pneumatiky
2000*1500*1000
Velikost přední pneumatiky
2000*1500*1000
Vyrobeno ve státě
Spojené státy
Dodací podmínky
FCA, FOB, CIF, EXW
Certifikace
EPA, CE
Přídavná zařízení
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Příslušenství
Klimatizace
Doplňková hydraulika
Couvací alarm
ovládací joystick
Další informace
Parameter configuration of Cat 246C skid Steer loader
Basic performance
Rated loading capacity (kg) :975
Overturning load (kg)1950
The overall weight of the machine (kg) is 3,348
The form of the lifting mechanism is radial lifting
Bucket lifting force (N) 32,575
Load capacity (ton) : 0.8-1 ton
Engine
Engine model: Caterpillar CAT 3044C DIT
Rated power (kw/rpm)56
Displacement (L)3.3
Through performance
Maximum driving speed (km/h) : 12.5/19.3
Forward turning radius (with bucket) (mm)2413
Forward turning radius (without accessories) (mm)1629
Rear turning radius (mm) : 1486
Departure Angle (°)26
Hydraulic system
System safety pressure (bar)230/280
System rated flow rate (L/min) : 84/125
Oil capacity
Fuel tank (L)98
Crankcase (L)10
Engine coolant (L)14
Hydraulic oil tank (L)42
Hydraulic System (L)57
Sprocket oil tank (L)10
Scope of work
Maximum unloading height (mm) : 2425
Unloading distance (at the maximum height) (mm) : 600
The maximum height (mm) of the bucket hinge pin is 3122
The unloading Angle (°) at the maximum unloading height is 40
The retraction Angle of the bucket at its highest point (°) is 96
Overall machine specification
Total length (with bucket) (mm) : 3692
Total length (without accessories) (mm)3124
Full width (tire edge) (mm)1676
Full height (up to the top of the cab) (mm)2083
Wheelbase (mm) : 1240
Minimum ground clearance (mm) : 225
