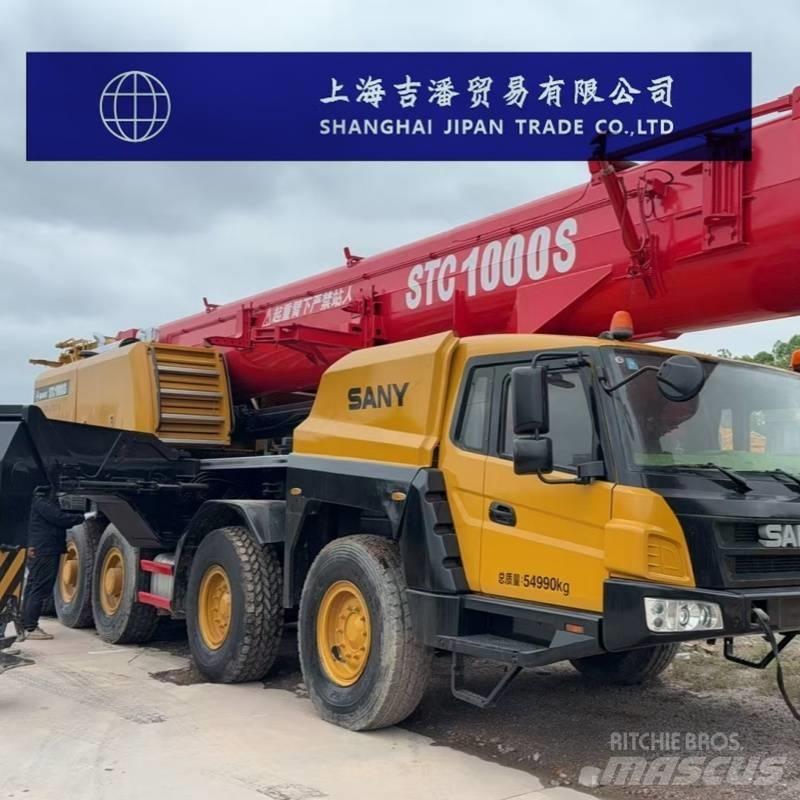

Sany STC 1000 S

Fly Jib,Hook,Counter Weight,ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

三一重工STC1000S起重机 参数配置 起升能力 最大额定起重量(t)100 最大额定起重力矩(KN.m)4234 最大额定起重力矩全伸臂(KN.m)1852 最大起升高度-基本臂(m)12.6 最大起升高度-全伸臂(m)63.5 最大起升高度-基本臂+副臂(m)79 最大起重量(吨)91-180吨 起重臂尺寸 基本臂节数7 起重臂截面型式U型 起重臂长度-基本臂(m)12.1 起重臂长度-全伸臂(m)63 起重臂长度-基本臂+副臂(m)78.5 副起重臂安装角度(°)0、15、30 作业速度参数 主卷扬最大起升速度(m/min)145（空载） 副卷扬最大起升速度(m/min)123 起重臂全伸时间(s)500 起重臂变幅时间(s)全起/落时间:40/150s 回转速度(rpm)2 发动机 底盘发动机型号发动机ISZ475 30 354kW EuroⅢ、康明斯ISZ480 40 358kW EuroⅣ 额定功率(kw/rpm)354/1800、358/1800 上车发动机康明斯QSB6.7-C240 178kW NR2 额定功率(kw/rpm)178/2200 行驶参数 最高行驶速度(km/h)85 最小转弯半径(m)9.6 最大爬坡度(%)45 接近角/离去角(°)21/18 最小离地间隙(mm )315 整机规格 整机全长(mm)14000 整机全宽(mm)3000 整机全高(mm)4000 工作重量(t)54.5 总配重(t)32.5 支腿跨距 纵向×横向(m)7.8×7.8
