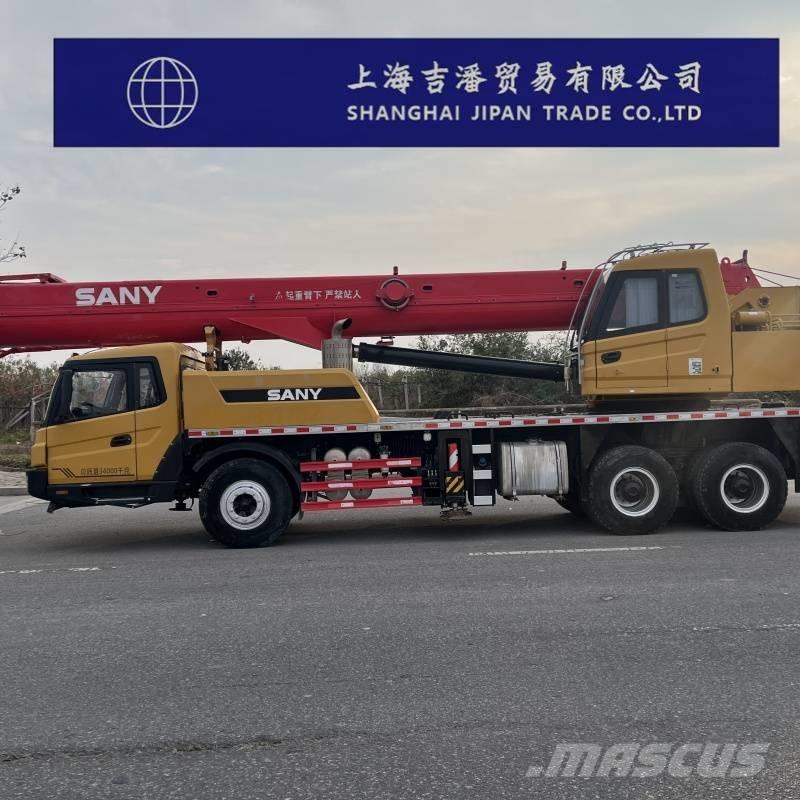

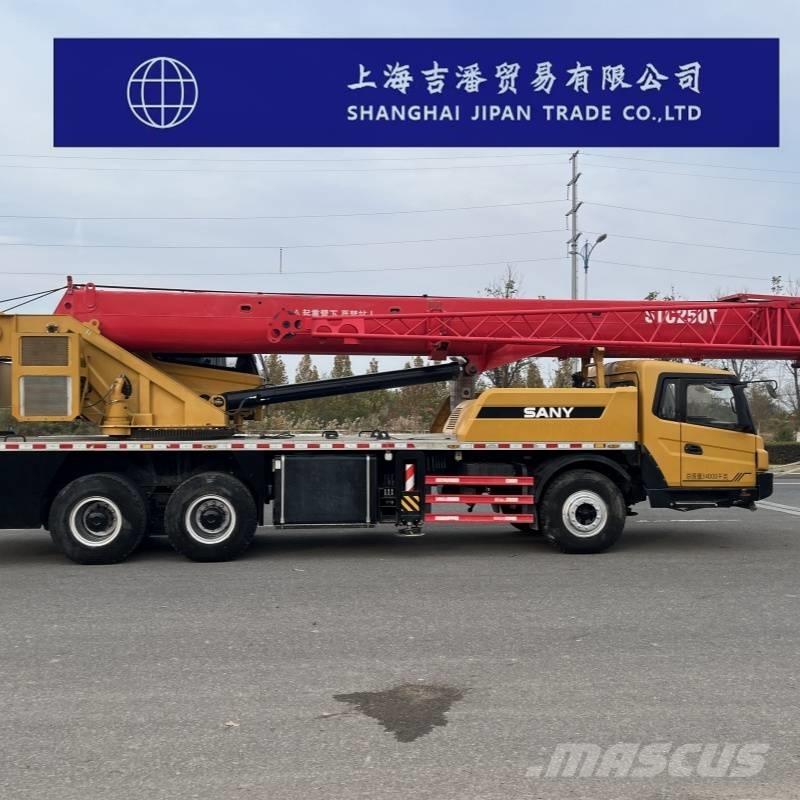

Sany STC 250 T

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Sany STC250T crane Lifting capacity Maximum rated lifting capacity (t) : 25 Maximum rated lifting moment (KN.m)1158 Maximum lifting height - basic boom + auxiliary boom (m)51 Maximum lifting capacity (in tons) : less than 45 tons Boom size The basic number of arm segments is 5 The cross-section type of the boom is U-shaped Boom length - fully extended boom (m)42.5 Operation speed parameter The maximum lifting speed of the main hoist (m/min) is 135 The full extension time of the boom (s) is 90 Rotational speed (rpm) : 2.7 Engine The chassis engine model is Weichai WP8.320E51 Rated power (kw/rpm) : 235/2100 Emission standard: National V Driving parameters Maximum driving speed (km/h) : 85 Minimum turning radius (m) : 10.5 Maximum climbing gradient (%) : 45 Approach Angle/departure Angle (°)10/13 Minimum ground clearance (mm) : 260 Overall machine specification The total length of the entire machine is 13,000 mm The overall width of the machine (mm) is 2550 The total height of the entire machine (mm) is 3590 Working weight (t)34 Total counterweight (t)5.9 Outrigger span Longitudinal × transverse (m)5.4*6.4
