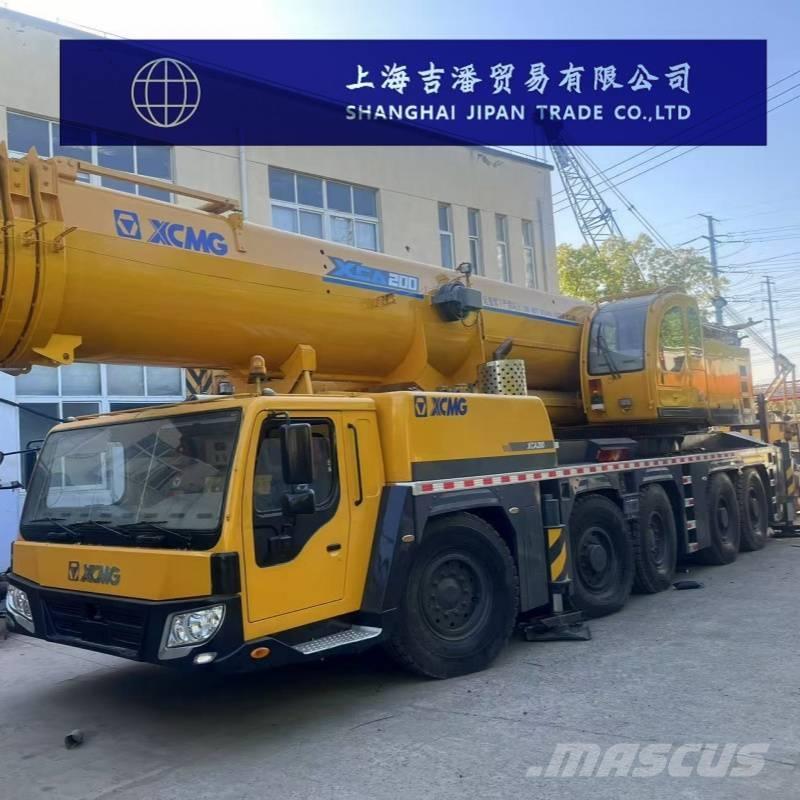

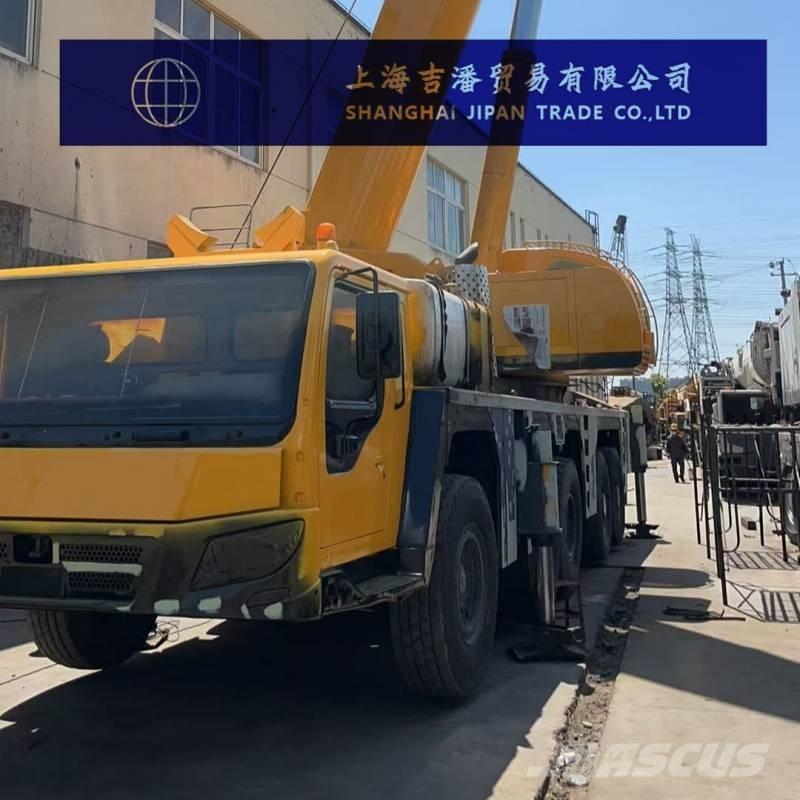

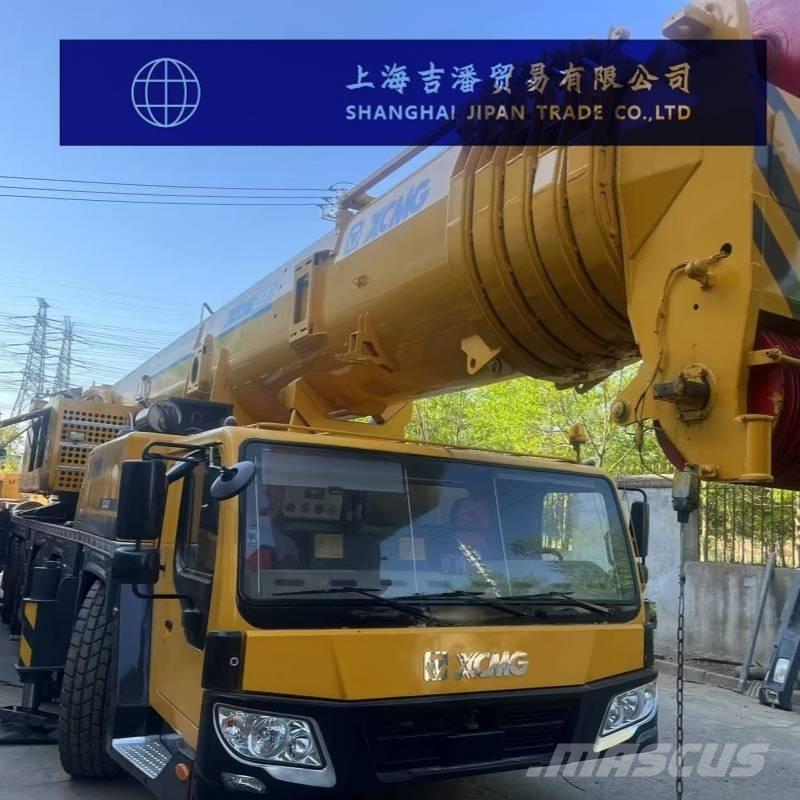

XCMG XCA 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Dimensions: The total length of the whole machine is 15350mm, the width is 3000mm, the height is 3950mm, the wheelbase is 2650/1650/2900/1650mm, and the wheelbase is 2590/2590/2590/2590/2590mm. Weight parameters: axle load is 11650/11650/11650/10020/10020kg. Power parameters: Chassis engine model is WP10.5H460E62, rated power 338kW/1900rpm, maximum torque 2100Nm/1000-1400rpm; The model on the car is WP7G300E473, with a rated power of 221kW/2200rpm and a maximum torque of 1200Nm/1400-1600rpm. Driving parameters: maximum driving speed ≥80km/h, minimum stable driving speed 1-1.5km/h, minimum turning diameter ≤18.5m, minimum ground clearance 307mm, approach angle 18°, departure angle 14°. Lifting performance parameters: maximum rated total lifting capacity 200t, minimum rated amplitude 3m, maximum lifting torque of the basic boom 6657kN·m, longest main arm 72m, longest main arm jib 107m, maximum rotation speed ≥1.5r/min, main lifting mechanism speed ≥ 130m/min, and full extension time of the boom ≤720s. Structural parameters: The main arm is an 8-section "U" section cylindrical welded structure, with a length of 14.9m-90m; The fixed jib is a two-section rear jib, with a double-pull plate truss structure, with a length of 11m and 18.5m; The total weight of the counterweight is 48t, the counterweight base is 14t, and the counterweight block is 5t×2, 18t, 5t, 1t.
