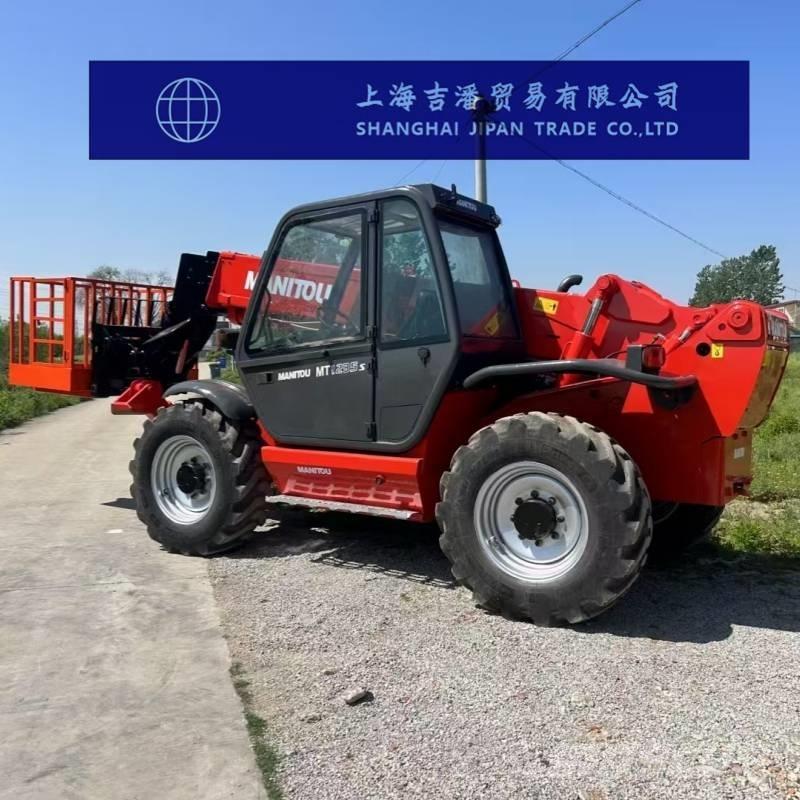

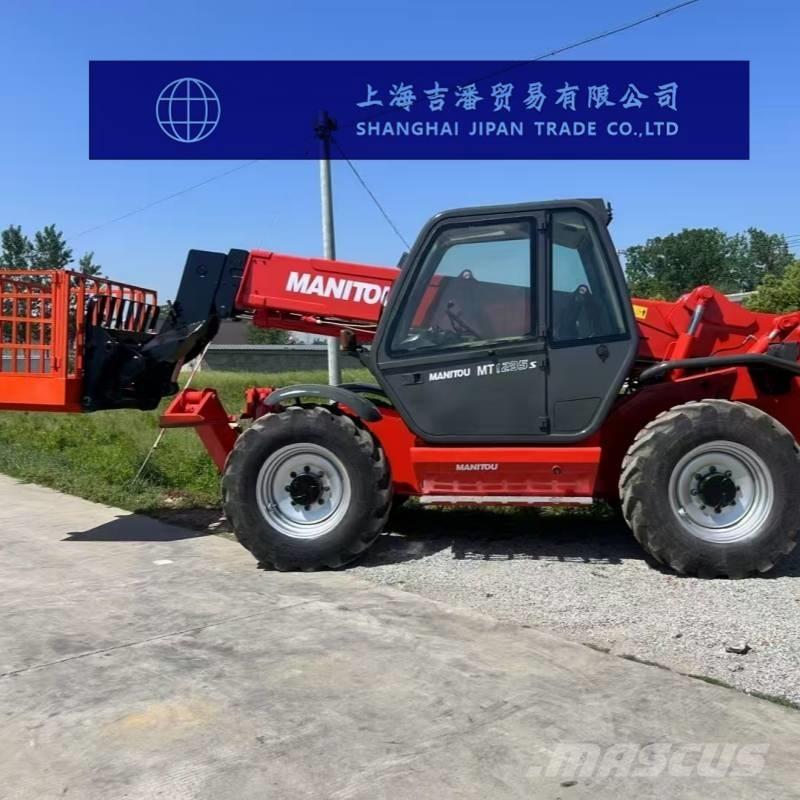

Manitou MT 1235

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Manitou MT1235 Telescopic Handler Dimensional parameters Total length (to the fork surface) : 5590mm Total width: 2405mm Total height: 2755mm Wheelbase: 2770mm Ground clearance: 445mm Turning radius (outer wheel) : 4158mm Lifting performance Maximum lifting height: 12,000mm Maximum forward extension distance: 8360mm Maximum lifting capacity: 3500kg Maximum forward extension lifting capacity: 1100kg Power system Engine brand: Perkins Engine model: 1104C-44 Turbo Rated power: 74.5kW Displacement: 4.4L Maximum torque: 412N·m Walking performance Operating weight: 8,960 kg Tire specification: 400/80-24 TL 156B Transmission type: Hydraulic torque converter Number of forward gears: 4 Reverse gear number: 4 Maximum driving speed: 25km/h Traction force: 8,775 kg Hydraulic system Pump type: Gear pump Pump flow rate: 105L/min Safety valve pressure: 26,000 kpa Other parameters Fuel tank capacity: 135 liters Hydraulic system oil capacity: 120L
